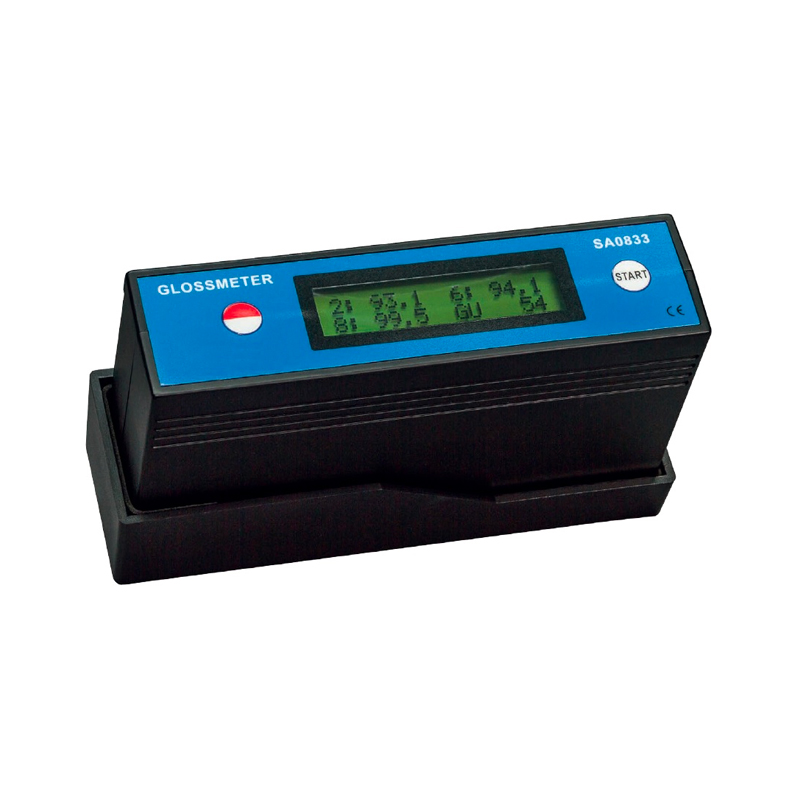

3-ANGLE GLOSSMETER
The 3-ANGLE professional portable glossimeter offers a complete solution for any application and need for measuring surface gloss. Instrument used to measure the degree of gloss of surfaces, it can be used for measurements applied to paints, inks, coatings, marble, granite, vitrified polished tiles, ceramics, bricks, porcelain and much more. The 3 detection geometries, 20 °, 60 ° and 85 ° respectively, allow maximum ductility of use, including low, medium and high gloss surfaces.
Electric furnaces used in the thermal processes of the metallurgical, chemical, dental and ceramic laboratory.
The combination of lightened plates, resistances mounted on glow plugs and the use of preformed ceramic fibers, allow these ovens to rise in temperature quickly and cool down just as quickly, so as to offer the greatest advantages in intermittent work.
Equipped with a K1P programmer with which it is possible to set 4 cooking cycles each consisting of 8 steps.
Models LKN74, LKN75, LKN76, LKN84, LKN85 and LKN86 equipped with wire resistors.
LKN77 and LKN87 models equipped with “silicon carbide” elements.
Models LKN78, LKN79, LKN80, LKN88, LKN89 and LKN90 with resistors consisting of elements in “silicide molybdenum”
Various models available (firing area dimensions and maximum temperature).
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Equipped with 6 independent heating cells;
- Possibility of setting and managing gradients of up to 15 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
- Possibility to manage the oven even from a distance.
- Firing area size 150x600x110 mm
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
- Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
- Possibility to program the cooling (optional)
- Management of the cooking cycle entrusted to a computer equipped with a touch screen
- Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
- Possibility of firing samples with a maximum size of 40 x 80 mm.
