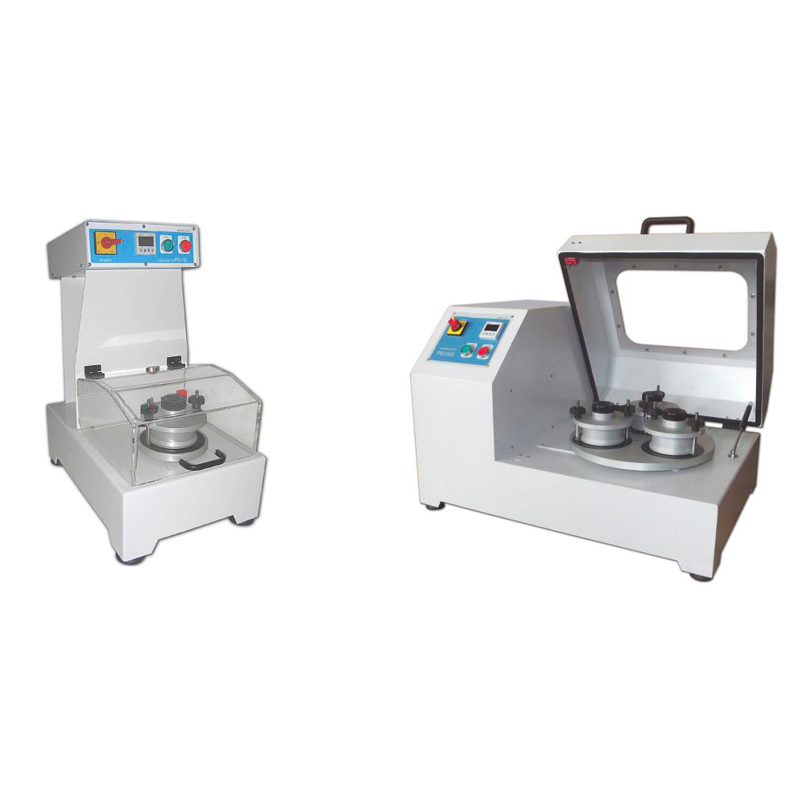

ABRASIMETERS PEI100 & PEI300

Back to products

PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard. Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display. Electronics with inverter for precise regulation of the number of revolutions. Model with 1 test group. Model with 3 test groups. For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.

Download pdf
Video
GRADIENT OVEN GR20-12
,

Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.

Features:

  • Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
  • Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
  • Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
  • Possibility to program the cooling (optional)
  • Management of the cooking cycle entrusted to a computer equipped with a touch screen
  • Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
  • Possibility of firing samples with a maximum size of 40 x 80 mm.



ELECTRIC MUFFLE MOD: FCJ 10/H
,

Sorry, but this article is only available in English.

Drying kiln for ceramic laboratory Model “ DRYCER ”
,

Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.



DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels

Code

 KILN DRYER FOR

CERAMIC LABORATORY

 Number of drawers

and useful inside cm.

External dimensions cm.

ARCDRYCER7

DRYCER 7

7 (85×140)

162x100xH120

ARCDRYCER7CR

DRYCER 7-W

7 (85×140)

162x100xH120

ARCDRYCER5

DRYCER 5

5 (85×140)

162x100xH120

ARCDRYCER5CR

DRYCER 5-W

5 (85×140)

162x100xH120

(5-W and 7-W models are equipped with wheels)

CABVELO 1000 SPRAYING BOOTH
,

Water veil cabin in stainless steel with water recirculation dust suppression system.

Useful working width: 97 × 70 cm in depth.

0.5 Hp water recirculation pump.

Complete with settling tank for recirculation and waste water disposal.



Power supply 400 V three-phase, 50 Hz.
