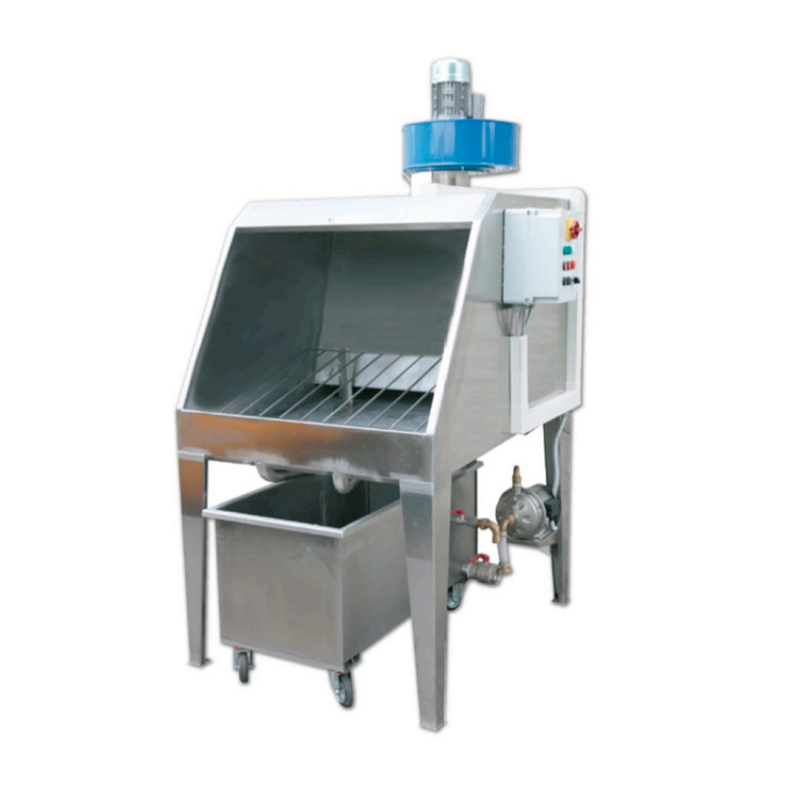

CABVELO 1000 SPRAYING BOOTH
Water veil cabin in stainless steel with water recirculation dust suppression system. Useful working width: 97 × 70 cm in depth. 0.5 Hp water recirculation pump. Complete with settling tank for recirculation and waste water disposal. Power supply 400 V three-phase, 50 Hz.
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
- Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
- Possibility to program the cooling (optional)
- Management of the cooking cycle entrusted to a computer equipped with a touch screen
- Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
- Possibility of firing samples with a maximum size of 40 x 80 mm.
The PEIBOX/B is the perfect booth to view the specimens abraded according to the PEI method, compliant with the ASTM C1027-99 and UNI EN ISO 10545-7 standards.
The instrument is supplied with the intensity of regulation adjusted in accordance with the standard.
Perfect complement to our AP-18, PEI100-300 and PEI3 abrasive meters.
Airbrush used for the spray application of glazes and colors in the ceramic laboratory.
With nylon tank.
Perfect complement to our spray booths.
