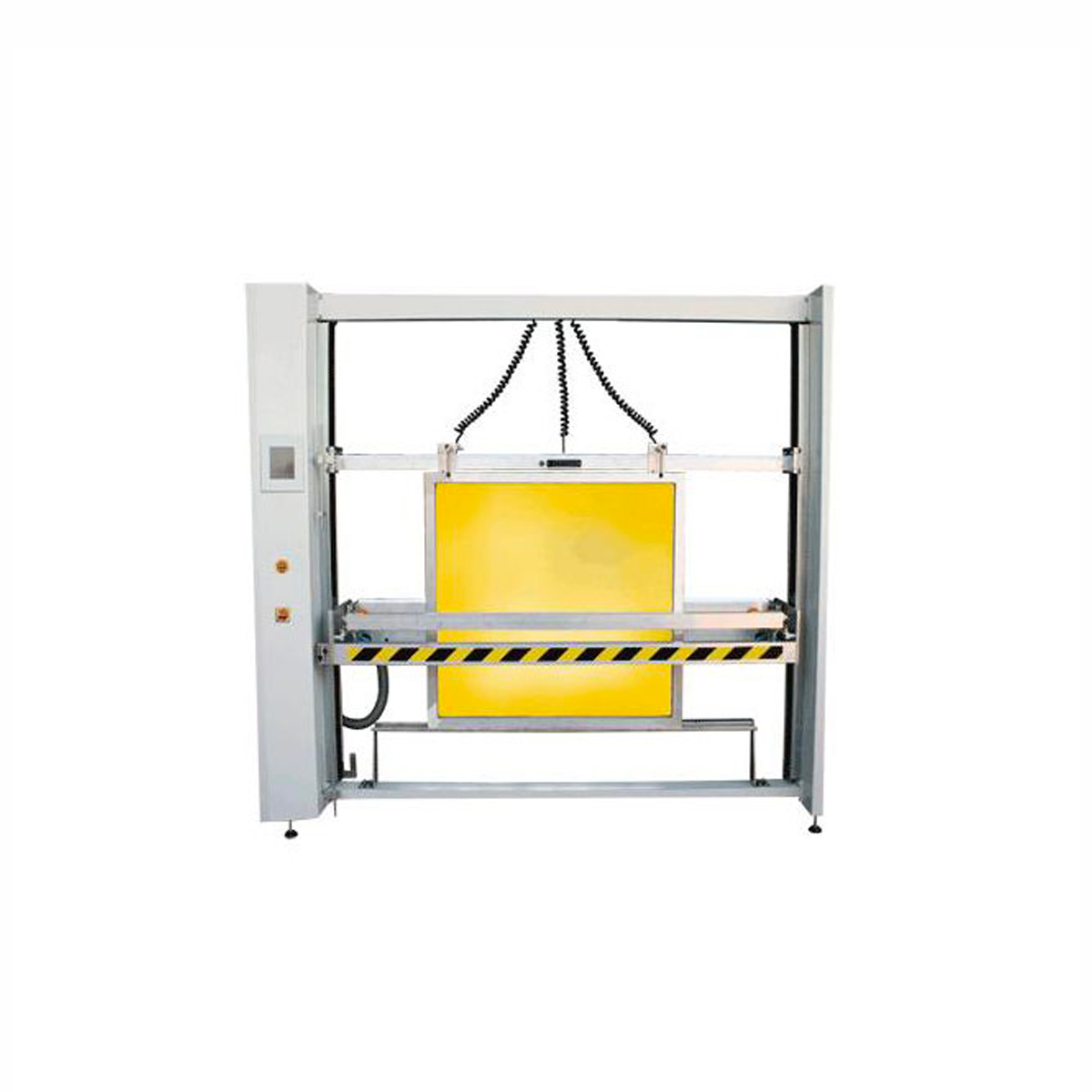

COATING MACHINE SP-B
The Seedex coating machine is cost efficient, ideal for smaller size frames for universal printing applications. The infinitely adjustable speed, the extremely smooth movement of the coating carriage and the possibility of selecting the number of coating passes either side will result in depositing reproducible amounts of emulsion for perfect stencils. The Seedex coating machine grants a perfect reproducibility of the coating layer structure coating tolerance +/- 1 micron. DESCRIPTION Very user-friendly Supplied with a full touch screen panel Adjustable stepless speed Coat build up from one or two sides The CPU can store 50 different customized programs The cross beam can be adapted simply to the required frame format The machine is supplied installed and is supplied with a pair of coating troughs (length according to desire) TECHNICAL DATA : Electrical connection: 230 V – 50/60 hz (other voltage on request) Pneumatic connection: 6 bar Control: maintenance-free compact control (SPS) with touch screen panel language change-over by push a button OPTIONS : lower frameholder movable double coating with one clamp per frame double coating with two clamps per frame
|
CODE |
NAME |
MODEL |
USEFUL SIZE CM |
|
AQSPEM1515 |
AUTOMATIC COATING MACHINE |
SP-B 1515 |
150X150 |
|
AQSPEM1520 |
AUTOMATIC COATING MACHINE |
SP-B 1520 |
150X200 |
|
AQSPEM1525 |
AUTOMATIC COATING MACHINE |
SP-B 1525 |
150X250 |
Special fabrics for screen printing, for precision filtration and for industrial applications where high accuracy textile micronets are needed.
SUPREX is a Monofilament Polyester Fabric specifically designed for Screen printing Applications.
The SUPREX range includes coarse fabric for printing high density inks, glitters, flocking and finer fabric for printing UV inks and high definition prints.
Seedex polymerizer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C) or for hardening or polymerizing ( after having applied a proper chemical hardener ) at a higher temperature (55 – 65°C).
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 100°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions
(other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power 9 kW
RECOMMENDED SPARE PARTS
Timer for automatic start and stop
Heating elements
RECOMMENDED HARDENER
Gelhard HD
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
Metal halide lamp for the photoexposing of flat or round screens treated with UV sensitive photoemulsions
Recommended products: CERAGEL SCD, CERAGEL SK and FLASHGEL SHW
A solution developed for automatic processing and washing of all kinds of flat screens after the exposure step. It allows a perfect screen opening so it is possible to obtain very high constancy and quality of the finished frame.
TECHNICAL CHARACTERISTICS
Completely stainless steel made. Provided with recycling device with filters which cut down the water consumption and allow to reuse the recycled water for the development of the screens. An electric control panel is used to set all the programs for automatic development and washing cycles.
AVAILABLE MODELS
S-VA Standard Model
S-VAD Model with locking doors
|
CODE |
NAME |
MODEL |
USEFUL SIZE CM. |
OVERALL DIMENSIONS CM. |
|
AQSSVA1216 |
AUTOMATIC DEVELOPING MACHINE |
S-VA 1216 |
120X160 |
160X70X250 H. |
|
AQSVAD1216 |
AUTOMATIC DEVELOPING MACHINE |
S-VAD 1216 |
120X160 |
160X70X250 H. |
