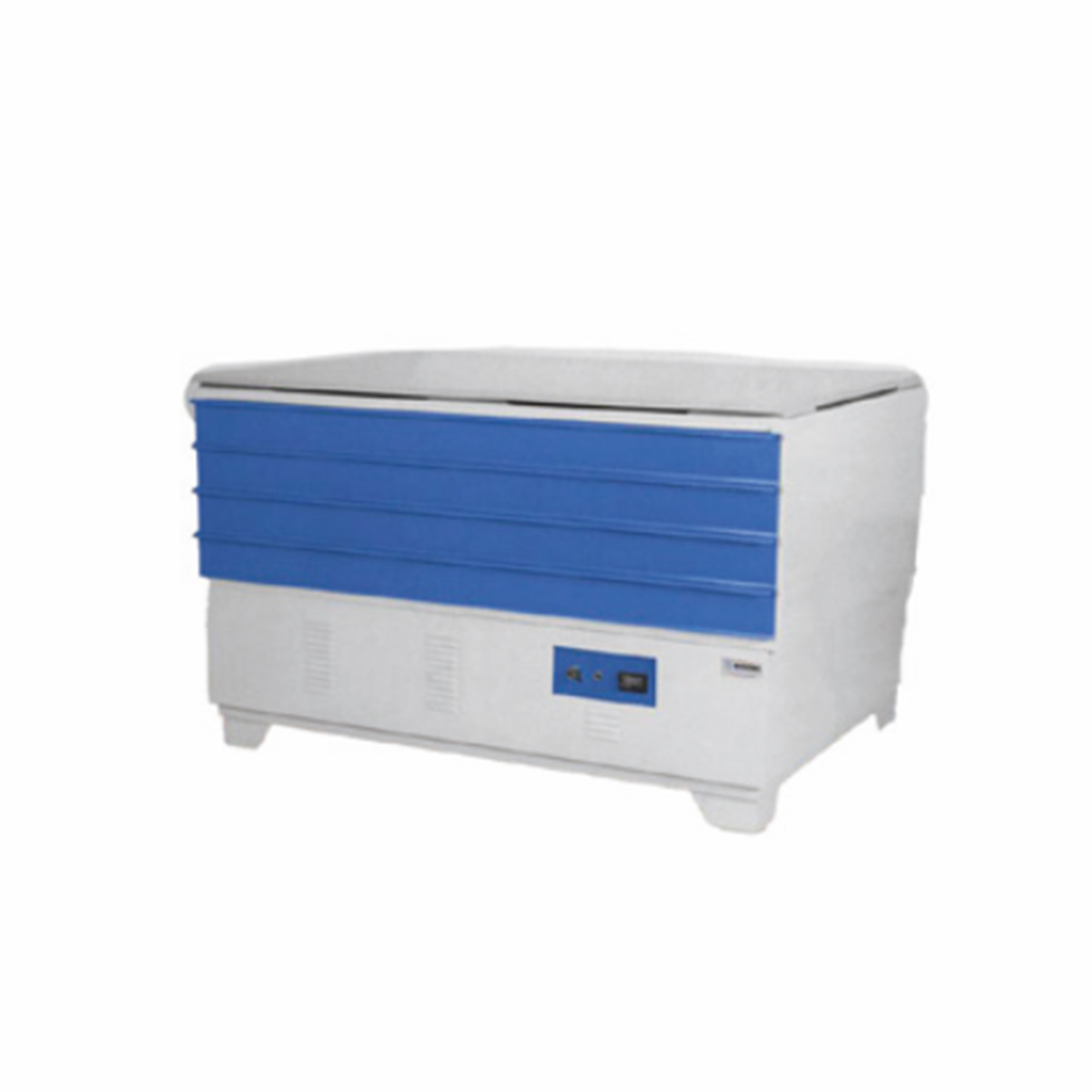

DRIER KILN FE
Seedex Dryer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C) TECHNICAL FEATURES Strong varnished steel structure; Operating with hot air fan-driven; Maximum operating temperature 50°C; Temperature control by a thermostat with digital display; Sliding drawers on bearings; 4 or 6 drawers standard versions (other models or dimensions could be available on request) Upper supporting surface in laminate wood; Electric power supply: 380 V – 3 phases + earth -50 Hertz Installed power RECOMMENDED OPTIONALS Timer for automatic start and stop
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
Table with light viewer for graphics control of the films, designs or various corrections.
TECHNICAL FEATURES
Frame and structure made by painted steel;
Satin-finished upper table; working table in crystal glass; light diffusion by neon lamps;
Side space for object’s holding;
With drawers to store drafts, drawings or films;
Power supply: 220 volts – 50 Hertz
Special fabrics for screen printing, for precision filtration and for industrial applications where high accuracy textile micronets are needed.
SUPREX is a Monofilament Polyester Fabric specifically designed for Screen printing Applications.
The SUPREX range includes coarse fabric for printing high density inks, glitters, flocking and finer fabric for printing UV inks and high definition prints.
The PVC tank is used for manual processing flat or round screens after the exposure step.
RECOMMENDED ACCESSORIES
Water jet pump; water vacuum extractor
TECHNICAL CHARACTERISTICS
The supporting frame is made of painted steel
The tank is made of acid-resistant PVC, electro-welded with robust edges
Provided with spray unit and tap fitting
Frame or cylinder supporting grid
Central lighting viewer (CV models) for processing control
AVAILABLE MODELS
SV without the central viewer
CV with the central viewer
CVRA (on demand) with water re-cycling system and bottom wheel carriage tank
| CODE | NAME | MODEL | USEFUL SIZE CM. | OVERALL DIMENSIONS CM. |
|
AQSVCV070100 |
PVC DEVELOPING TANK |
CV-0710 |
70X100 |
106X95X176 H. |
|
AQSVSV070100 |
PVC DEVELOPING TANK |
SV-0710 |
70X100 |
106X95X176 H. |
|
AQSVCV075200 |
PVC DEVELOPING TANK |
CV-0752 |
75X200 |
205X100X222 H. |
|
AQSVSV075200 |
PVC DEVELOPING TANK |
SV-0752 |
75X200 |
205X100X222 H. |
|
AQSVCV100140 |
PVC DEVELOPING TANK |
CV-1014 |
100X140 |
145X125X185 H. |
|
AQSVSV100140 |
PVC DEVELOPING TANK |
SV-1014 |
100X140 |
145X125X185 H. |
|
AQSVCV120160 |
PVC DEVELOPING TANK |
CV-1216 |
120X160 |
165X145X185 H. |
|
AQSVSV120160 |
PVC DEVELOPING TANK |
SV-1216 |
120X160 |
165X145X185 H. |
Made by painted stainless steel, with manual closing clamps.
All movements are effected by 2 driving handwheels plus the beam’s one;
Complete of n ° 3 pression bars and all accessories.
The TME “multistretcher” is a mesh tensioning unit for the professionals.
It allows stretching mesh on many frames of different formats and profiles at the same time.
The waste of mesh is minimized and the most economical production is guaranteed.
The frames can be stretched straight or at any angle with synthetic mesh, metallised polyester as well as stainless steel mesh to produce reproducible stencils for all printing purposes.
Due to the handwheels and beam movements of all 3 sides, a parallel, even mesh tension of warp and weft is guaranteed; the uniform stretching over the entire area is maintained by the clamps on all three sides which are riding independently on roller bearings.
Frame contact with the mesh again is manually driven for easy handling.
| CODE | NAME | MODEL | USEFUL FRAME SIZE CM. | OVERALL DIMENSION CM. |
| AQSTME1330PM | MANUAL STRETCHING MACHINE | TME 130X300 |
130X300 |
390X186XH112 |
|
AQSTME1630PM |
MANUAL STRETCHING MACHINE |
TME 160X300 |
160X300 |
390X216XH112 |
|
AQSTME1830PM |
MANUAL STRETCHING MACHINE |
TME 180X300 |
180X300 |
390X236XH112 |
|
AQSTME2030PM |
MANUAL STRETCHING MACHINE |
TME 200X300 |
200X300 |
390X256XH112 |
