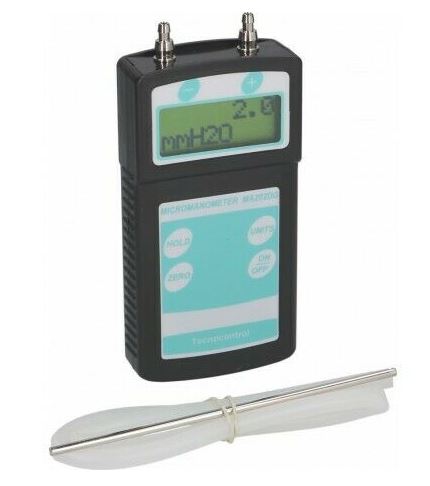

ELECTRONIC DIFFERENTIAL MICROMANOMETER MA202DG
The portable differential micromanometer model MA / 202 uses a silicon piezoelectric sensor, which allows to measure both the static pressure and the differential pressure. Features:
- Scale from 0 to 1000 mm / H20, with reading 0.1 mm / H20 up to 200 mm / H20. Beyond, the reading is 1mm/H20.
- Digital reading with alphanumeric LCD display.
- N. 5 selectable measurement units: mm. H20 (mm. CA.) hPa-mbar – mm Hg – PSI.
Equipment used for sharpening screen printing squeegees used both on manual printing bases and on semi-automatic printing bases.
Solid steel structure, with manual movement sharpening wheel
Power supply: 400V 50 / 60Hz
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Equipped with 6 independent heating cells;
- Possibility of setting and managing gradients of up to 15 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
- Possibility to manage the oven even from a distance.
- Firing area size 150x600x110 mm
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
- Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
- Possibility to program the cooling (optional)
- Management of the cooking cycle entrusted to a computer equipped with a touch screen
- Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
- Possibility of firing samples with a maximum size of 40 x 80 mm.
Water veil cabin in stainless steel with water recirculation dust suppression system.
Useful working width: 97 × 70 cm in depth.
0.5 Hp water recirculation pump.
Complete with settling tank for recirculation and waste water disposal.
Power supply 400 V three-phase, 50 Hz.
