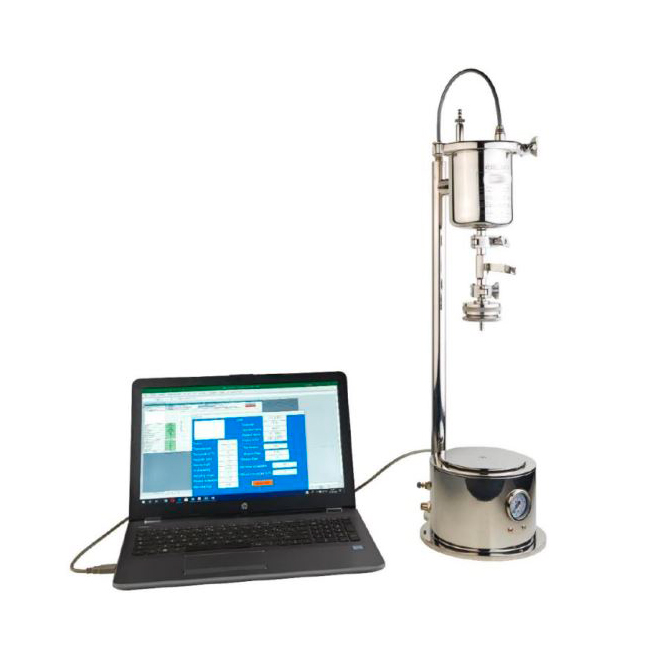

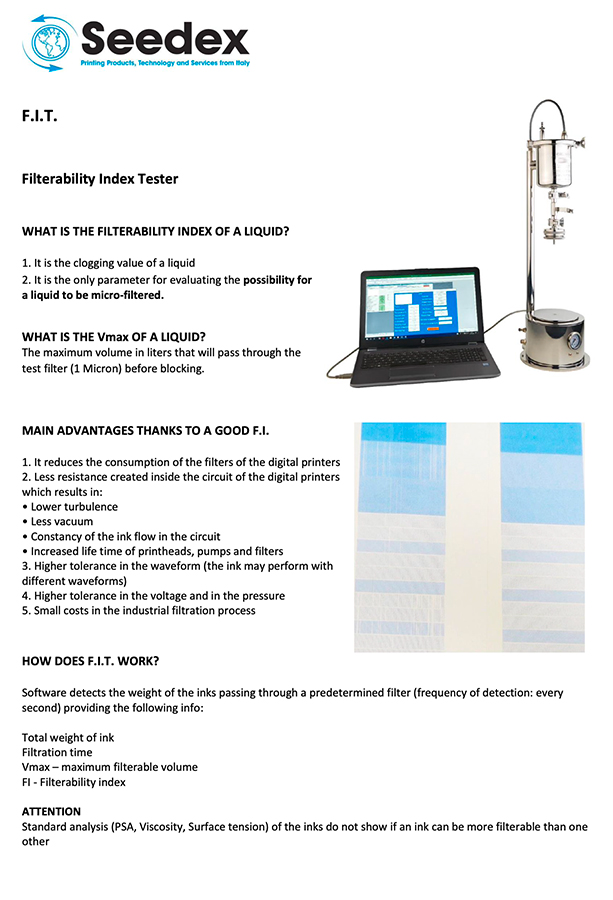

FIT Filterability Index Tester
The tool that was missing in your control lab. The only solution on the market that allows you to check the quality of a ceramic ink considering its filterability. Fundamental parameter for the final color result and the protection of the entire print flow (pipes, filters, pumps, print heads). And so on…
Pumps of the best brands, for ceramic digital printers.
Seedex photoexposer is a three-function machine for drying and exposing screen printing frames.
MACHINE’S DESCRIPTION AND CHARACTERISTICS:
Painted steel structure
The machine is equipped with a dryer with drawers located in the bottom part of the machine, with a pneumatic press in the central part, and a halogen lamp located in the upper part.
The Pneumatic press is available in 2 versions:
manual opening (model TC) and
automatic opening (model TC-A);
Dryer with 3 drawers sliding on bearings to dry photosensitive emulsion before exposure,
Completed with a UV ray protection system consisting of a rigid casing with a self-winding front curtain and sliding side panels for inspection.
The control panel consists of a 29 channel digital computer that can control and store exposure times, vacuum times, and the drying kiln temperature and display the number of hours the bulb has been operating in order to monitor its lifetime.
Exposure compensating light with photocell
A vacuum meter is installed on the control panel that allows the pressure control in the vacuum table
The cooling system include preventing overheating of electrical components
Metal-halogen lamp in 2 versions: 2000/5000 W or 3500/7000 W
POWER SUPPLY
400 V – 50 Hz (3 phases + earth) – 10000 W, with variations possible on request
RECOMMENDED SPARE PARTS
halogen bulb 5000 or 7000 W depending on the models
rubber mat with a sealed edge sized to the pneumatic press
|
CODE NUMBER |
PHOTOEXPOSER TC (MANUAL PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTC1 |
PHOTOEXPOSER TC 1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTC2 |
PHOTOEXPOSER TC 2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTC3 |
PHOTOEXPOSER TC 3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTC4 |
PHOTOEXPOSER TC 4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTC5 |
PHOTOEXPOSER TC 5 |
140X220 |
120X200 |
258X178X300 H |
|
CODE NUMBER |
PHOTOEXPOSER TC-A (AUTOMATIC PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTCA1 |
PHOTOEXPOSER TC-A1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTCA2 |
PHOTOEXPOSER TC-A2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTCA3 |
PHOTOEXPOSER TC-A3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTCA4 |
PHOTOEXPOSER TC-A4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTCA5 |
PHOTOEXPOSER TC-A5 |
140X220 |
120X200 |
258X178X300 H |
Alumina balls are available in different types and diameters for grinding in continuous mills, discontinuous mills and microball mills.
Zirconium microspheres are special beads suitable for ultrafine grinding of colors for digital INKJET machines.
The compact and lightweight instruments of the Ci60 series (portable spectrophotometers) ensure high performance for quickly measuring and comparing with tolerances at all stages of production. With different configurations and various price ranges, these tools solve color measurement challenges across a wide range of industries.
CI60
The entry-level stand-alone Ci60 portable sphere spectrophotometer ensures color quality on reception, outdoors or in the manufacturing plant.
Quality control on display.
CI64
Ci64 is X-Rite’s most accurate portable sphere spectrophotometer, available in three models with correlated gloss measurements, simultaneous SPIN / SPEX and a UV option. Perfect to be integrated with a color control and formulation software.
