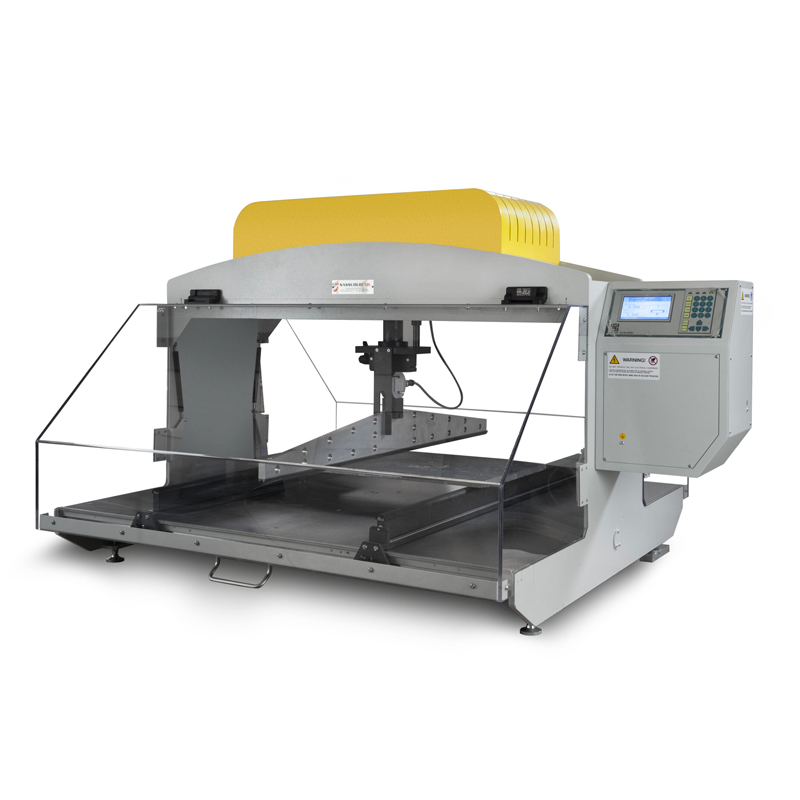

Tabletop instrument, in powder-coated steel, with precision electronics for the determination of the breaking load (max load) on ceramic or similar specimens. Semi-automatic, it is equipped with a stainless steel surface on which two oscillating supports (knives) are positioned, mechanically moved and manually and individually adjustable, which in turn receive the specimen to be tested. With this tool it is possible to determine the flexural strength, the modulus of rupture, and deflection of curvature of the sample operating according to the standards: UNI EN ISO 10545-4 | ASTM C 648 – 84 | DIN 51030 | EN 100 | EN12825 Load cell of 1000 kg. Different sizes available.
Various models with different accuracy and range.
Common features:
– Automatic tare over the entire range.
– Serial RS232 interface as standard.
– Filters for weighing in particular conditions and for dosing
– Selectable measurement units.
– LCD display with backlight.
– Operation with external power supply or internal rechargeable battery both supplied.
Power supply 230V 50/60 Hz
Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.
DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels
|
Code |
KILN DRYER FOR
CERAMIC LABORATORY |
Number of drawers
and useful inside cm.
|
External dimensions cm. |
|
ARCDRYCER7 |
DRYCER 7 |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER7CR |
DRYCER 7-W |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER5 |
DRYCER 5 |
5 (85×140) |
162x100xH120 |
|
ARCDRYCER5CR |
DRYCER 5-W |
5 (85×140) |
162x100xH120 |
(5-W and 7-W models are equipped with wheels)
PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces
Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.
Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.
Electronics with inverter for precise regulation of the number of revolutions.
Model with 1 test group.
Model with 3 test groups.
For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
