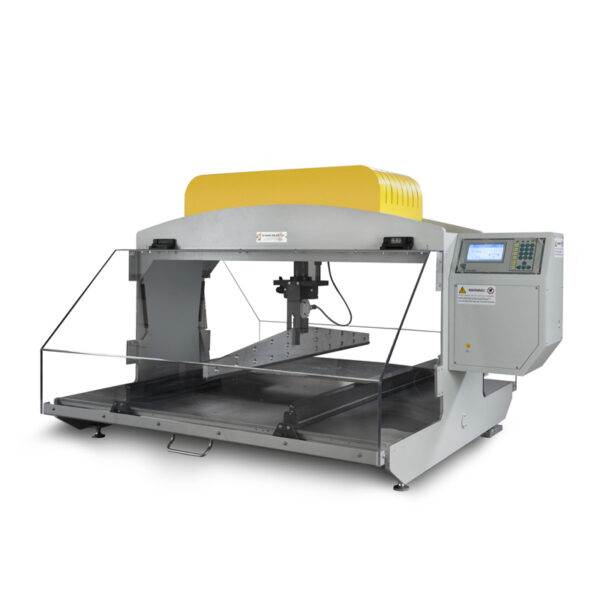

FLS3000 LABORATORY FLEXIMETER
Tabletop instrument, in powder-coated steel, with precision electronics for the determination of the breaking load (max load) on ceramic or similar specimens. Semi-automatic, it is equipped with a stainless steel surface on which two oscillating supports (knives) are positioned, mechanically moved and manually and individually adjustable, which in turn receive the specimen to be tested. With this tool it is possible to determine the flexural strength, the modulus of rupture, and deflection of curvature of the sample operating according to the standards: UNI EN ISO 10545-4 | ASTM C 648 – 84 | DIN 51030 | EN 100 | EN12825 Load cell of 3000 kg. Different sizes available.
Vernier calipers with micrometric screw for precise measurements. Made of hardened stainless steel.
Vernier 1/50.
Various sizes available.
Electronic centesimal vernier calipers, for precise digital measurements. Made of hardened stainless steel, they have a screen with LCD display.
Equipped with zero button, measurement unit conversion button (mm / inch) and on / off button.
Various sizes available.
Laboratory oven built with a steel structure painted in fire at 180 ° C with paints scratch-resistant epoxy.
Thermal insulation is provided in ceramic fiber and low-density refractory bricks.
For the CVK-N and CVK-N / S models, the heating parts are composed of Kanthal-type spiral-wound electric resistors.
For the CVK-N / SCS model the heating parts are composed of silicon carbide electric resistors.
With this oven, it is possible to simulate the entire cooking curve of a continuous industrial oven.
Oven equipped with an easily settable control panel.
Various models available (firing volume and maximum temperature).
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
The PEIBOX/B is the perfect booth to view the specimens abraded according to the PEI method, compliant with the ASTM C1027-99 and UNI EN ISO 10545-7 standards.
The instrument is supplied with the intensity of regulation adjusted in accordance with the standard.
Perfect complement to our AP-18, PEI100-300 and PEI3 abrasive meters.
