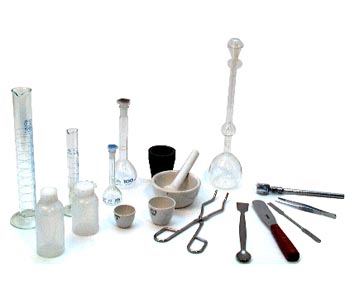

GLASSWARE FOR LABORATORY

Back to products

Glasses Reagent bottles Mohr burettes Pellet burettes Calcimeters Capsules Graduated cylinders Crystallizers Dryers Bubblers Funnels for analysis Watch lenses Sanders Conical volumetric flasks (flasks) Filtration flasks Round volumetric flasks with cap Balls Weighing filters Calibrated pipettes Graduated pipettes Test tubes Petri dishes

Download pdf
Video
Model VIS

Sorry, but this item is only available in English.

GRADIENT OVEN GR95 / S
,

Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.

Features:

  • Equipped with 6 independent heating cells;
  • Possibility of setting and managing gradients of up to 15 ° C between cell and cell
  • Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
  • Possibility to manage the oven even from a distance.
  • Firing area size 150x600x110 mm



GRADIENT OVEN GR20-12
,

Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.

Features:

  • Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
  • Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
  • Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
  • Possibility to program the cooling (optional)
  • Management of the cooking cycle entrusted to a computer equipped with a touch screen
  • Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
  • Possibility of firing samples with a maximum size of 40 x 80 mm.



Drying kiln for ceramic laboratory Model “ DRYCER ”
,

Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.



DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels

Code

 KILN DRYER FOR

CERAMIC LABORATORY

 Number of drawers

and useful inside cm.

External dimensions cm.

ARCDRYCER7

DRYCER 7

7 (85×140)

162x100xH120

ARCDRYCER7CR

DRYCER 7-W

7 (85×140)

162x100xH120

ARCDRYCER5

DRYCER 5

5 (85×140)

162x100xH120

ARCDRYCER5CR

DRYCER 5-W

5 (85×140)

162x100xH120

(5-W and 7-W models are equipped with wheels)
