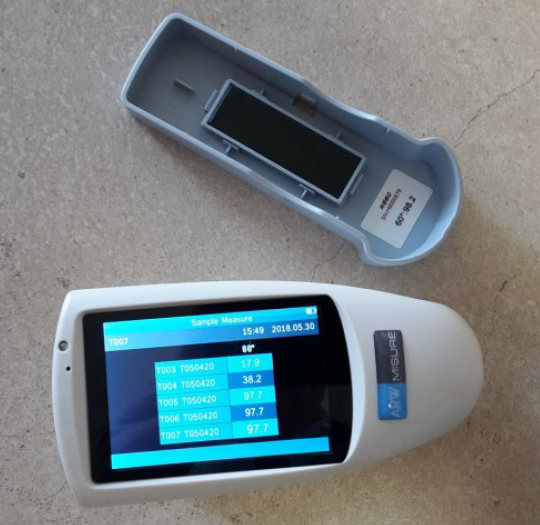

GLOSSMETER H60
The H60 professional portable gloss meter offers a complete solution for any application and surface gloss measurement need. Instrument used to measure the degree of gloss of surfaces, it can be used for measurements applied to paints, inks, coatings, marble, granite, vitrified polished tiles, ceramics, bricks, porcelain and much more.
Electric furnaces used in the thermal processes of the metallurgical, chemical, dental and ceramic laboratory.
The combination of lightened plates, resistances mounted on glow plugs and the use of preformed ceramic fibers, allow these ovens to rise in temperature quickly and cool down just as quickly, so as to offer the greatest advantages in intermittent work.
Equipped with a K1P programmer with which it is possible to set 4 cooking cycles each consisting of 8 steps.
Models LKN74, LKN75, LKN76, LKN84, LKN85 and LKN86 equipped with wire resistors.
LKN77 and LKN87 models equipped with “silicon carbide” elements.
Models LKN78, LKN79, LKN80, LKN88, LKN89 and LKN90 with resistors consisting of elements in “silicide molybdenum”
Various models available (firing area dimensions and maximum temperature).
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Equipped with 6 independent heating cells;
- Possibility of setting and managing gradients of up to 15 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
- Possibility to manage the oven even from a distance.
- Firing area size 150x600x110 mm
The RM200QC Imaging Spectro Colorimeter is designed to ensure stable comparison of colors on materials and products, whenever color control is important.
Practical and pocket-sized tool is perfect for laboratory or in-line color checking.
System with 45 ° / 0 geometry and LED light source, with reading spot of 4 and 8 mm.
With USB interface that allows the instrument to be recharged and the measurements to be downloaded to the computer.
Uses:
– verification of color stability throughout the entire production process.
– immediate quality control with Pass / Fail procedure.
