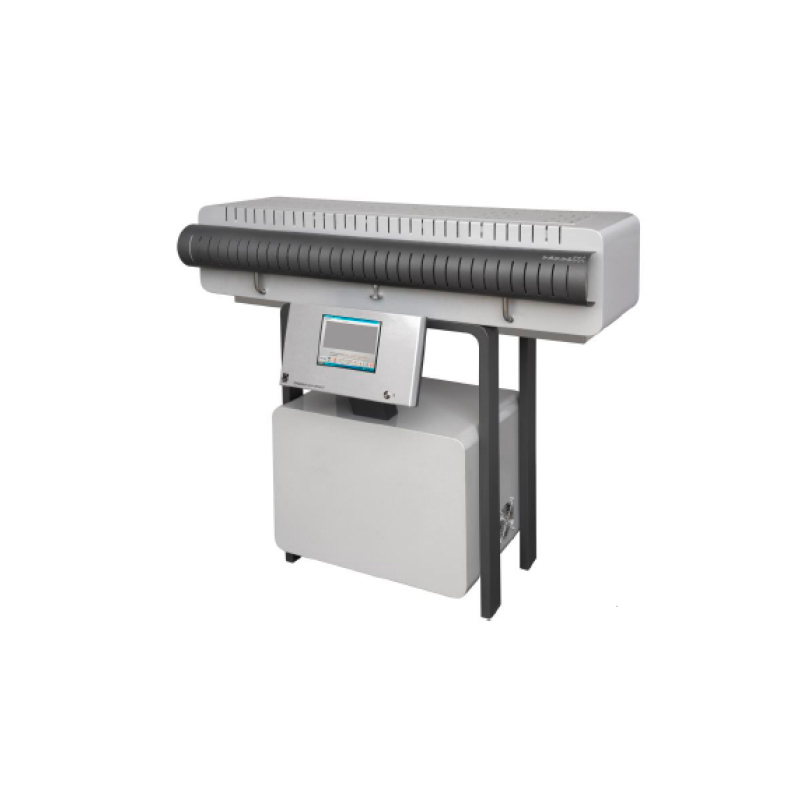

GRADIENT OVEN GR20-12
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle. Features:
- Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
- Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
- Possibility to program the cooling (optional)
- Management of the cooking cycle entrusted to a computer equipped with a touch screen
- Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
- Possibility of firing samples with a maximum size of 40 x 80 mm.
Electric furnaces used in the thermal processes of the metallurgical, chemical, dental and ceramic laboratory.
The combination of lightened plates, resistances mounted on glow plugs and the use of preformed ceramic fibers, allow these ovens to rise in temperature quickly and cool down just as quickly, so as to offer the greatest advantages in intermittent work.
Equipped with a K1P programmer with which it is possible to set 4 cooking cycles each consisting of 8 steps.
Models LKN74, LKN75, LKN76, LKN84, LKN85 and LKN86 equipped with wire resistors.
LKN77 and LKN87 models equipped with “silicon carbide” elements.
Models LKN78, LKN79, LKN80, LKN88, LKN89 and LKN90 with resistors consisting of elements in “silicide molybdenum”
Various models available (firing area dimensions and maximum temperature).
The RM200QC Imaging Spectro Colorimeter is designed to ensure stable comparison of colors on materials and products, whenever color control is important.
Practical and pocket-sized tool is perfect for laboratory or in-line color checking.
System with 45 ° / 0 geometry and LED light source, with reading spot of 4 and 8 mm.
With USB interface that allows the instrument to be recharged and the measurements to be downloaded to the computer.
Uses:
– verification of color stability throughout the entire production process.
– immediate quality control with Pass / Fail procedure.
Water veil cabin in stainless steel with water recirculation dust suppression system.
Useful working width: 97 × 70 cm in depth.
0.5 Hp water recirculation pump.
Complete with settling tank for recirculation and waste water disposal.
Power supply 400 V three-phase, 50 Hz.
PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces
Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.
Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.
Electronics with inverter for precise regulation of the number of revolutions.
Model with 1 test group.
Model with 3 test groups.
For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
