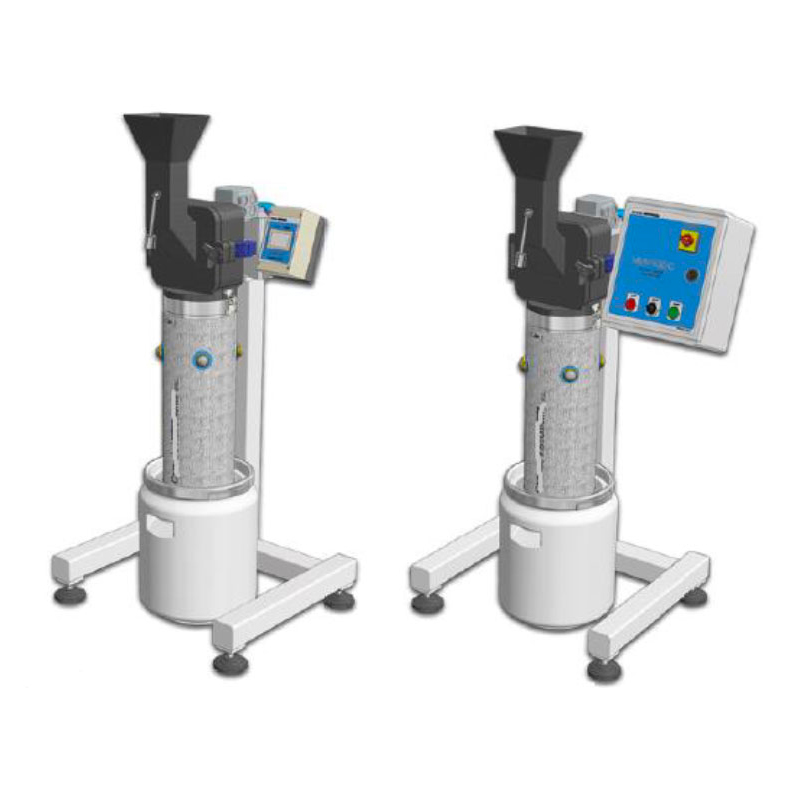

HM / 530 SERIES LABORATORY HAMMER MILLS
For grinding medium-hard and fragile materials such as clays, grits, terracotta chamotte, scrap, insulators, coal, limestone, kaolin, slag, etc. The degree of fineness is related to the type of sieve used. The production depends on the fineness to be obtained, and can indicatively vary from 5 to 30 Kg / h. The incoming material must have a maximum size of 20/25 mm Hammer mill model HM/530/C General features: – Grinding chamber ø 150 mm. – Rotor with n. 3 adjustable and interchangeable distance hammers Hammer mill HMV / 530 / C as a basic model but with the following variants: Electric control panel with main switch, start and stop buttons and potentiometer for adjusting the rotation speed.
Laboratory oven built with a steel structure painted in fire at 180 ° C with paints scratch-resistant epoxy.
Thermal insulation is provided in ceramic fiber and low-density refractory bricks.
For the CVK-N and CVK-N / S models, the heating parts are composed of Kanthal-type spiral-wound electric resistors.
For the CVK-N / SCS model the heating parts are composed of silicon carbide electric resistors.
With this oven, it is possible to simulate the entire cooking curve of a continuous industrial oven.
Oven equipped with an easily settable control panel.
Various models available (firing volume and maximum temperature).
Electric furnaces used in the thermal processes of the metallurgical, chemical, dental and ceramic laboratory.
The combination of lightened plates, resistances mounted on glow plugs and the use of preformed ceramic fibers, allow these ovens to rise in temperature quickly and cool down just as quickly, so as to offer the greatest advantages in intermittent work.
Equipped with a K1P programmer with which it is possible to set 4 cooking cycles each consisting of 8 steps.
Models LKN74, LKN75, LKN76, LKN84, LKN85 and LKN86 equipped with wire resistors.
LKN77 and LKN87 models equipped with “silicon carbide” elements.
Models LKN78, LKN79, LKN80, LKN88, LKN89 and LKN90 with resistors consisting of elements in “silicide molybdenum”
Various models available (firing area dimensions and maximum temperature).
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Equipped with 6 independent heating cells;
- Possibility of setting and managing gradients of up to 15 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
- Possibility to manage the oven even from a distance.
- Firing area size 150x600x110 mm
Mechanical shaft stirrer with LED display.
Maximum stirring rate of 20 Litres.
Agitation rate adjustable from 50 to 2,200 rpm with a power of 50W.
Overheating motor overload indicator light.
Upper passage hole for stirring rods.
Supplied complete with steel spindle and relative key.
Degree of protection IP 42. 220V power supply.
