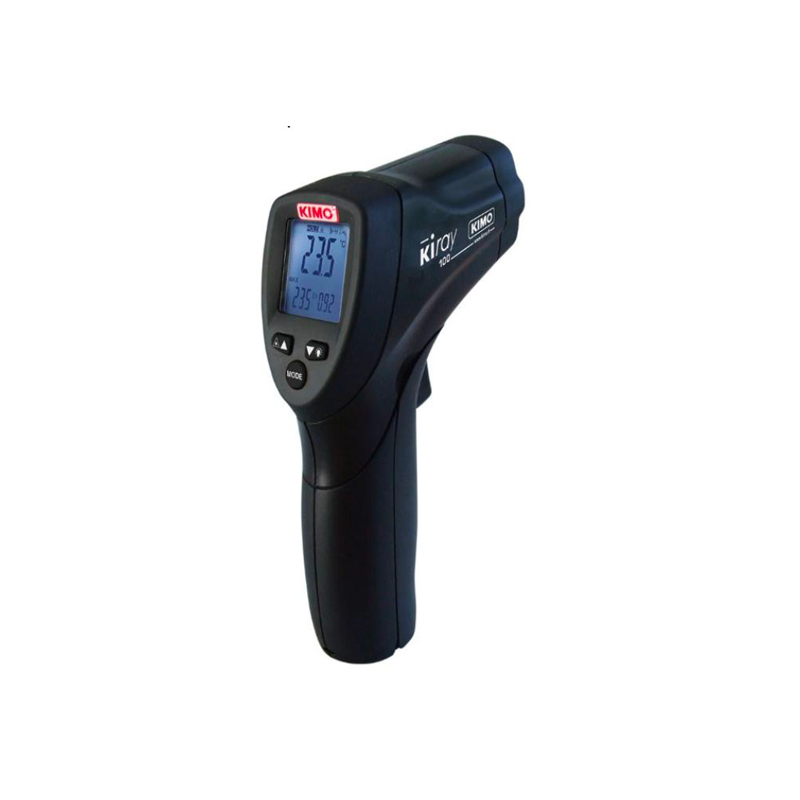

The KIRAY infrared thermometer is a key tool to diagnose, inspect and control any temperature, with the advantage of using “non-contact” technology. Available in three versions: Kiray Model 50 Pyrometer with laser pointer. Measurement range: -50 to + 380 ° C Kiray model 100 Pyrometer with double laser pointer. Measurement range: -50 to + 800 ° C Kiray 300 model Pyrometer with double laser pointer. Measurement range: -50 to + 1850 ° C
Vernier calipers with micrometric screw for precise measurements. Made of hardened stainless steel.
Vernier 1/50.
Various sizes available.
Electronic centesimal vernier calipers, for precise digital measurements. Made of hardened stainless steel, they have a screen with LCD display.
Equipped with zero button, measurement unit conversion button (mm / inch) and on / off button.
Various sizes available.
Laboratory ovens suitable for cooking with rapid cycles.
The temperature and cooking cycle are controlled by a microprocessor programmer mod. K1PX with which it is possible to set 4 cooking cycles composed, each, of 8 STEPS.
Optional: Indirect forced cooling with automatic chimney control included
Optional: Direct forced cooling with automatic chimney control included
Optional: Automatic chimney management
Optional: Automatic management of the controlled atmosphere
Optional: Automatic vacuum management (Vacuum pump included)
Optional: PC management software (PC excluded)
Various models available (firing zone size and maximum temperature).
Various models with different accuracy and range.
Common features:
– Automatic tare over the entire range.
– Serial RS232 interface as standard.
– Filters for weighing in particular conditions and for dosing
– Selectable measurement units.
– LCD display with backlight.
– Operation with external power supply or internal rechargeable battery both supplied.
Power supply 230V 50/60 Hz
Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.
DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels
|
Code |
KILN DRYER FOR
CERAMIC LABORATORY |
Number of drawers
and useful inside cm.
|
External dimensions cm. |
|
ARCDRYCER7 |
DRYCER 7 |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER7CR |
DRYCER 7-W |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER5 |
DRYCER 5 |
5 (85×140) |
162x100xH120 |
|
ARCDRYCER5CR |
DRYCER 5-W |
5 (85×140) |
162x100xH120 |
(5-W and 7-W models are equipped with wheels)
