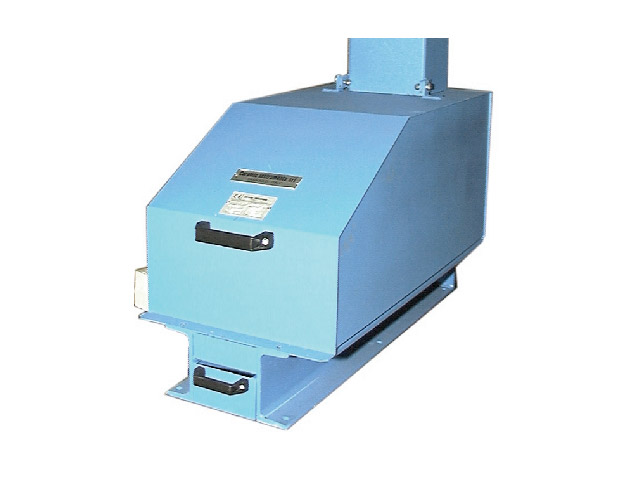

Laboratory jaw crusher, used for crushing aggregates, mineral samples and other materials, even very hard. The mouth measures 100×60 mm and the hourly production varies from 100 to 400 kg according to the type of material. The opening of the jaws can be adjusted from 2 to 15 mm. Cast iron structure, manganese jaws.
|
Name |
Composed of. |
|
Racla (presser) with handle |
Red polyurethane with wooden handle |
|
Racla (preemaker) with handle |
Natural red rubber with wooden handle |
|
Racla (preemaker) with handle |
Red polyurethane with aluminum handle |
|
Racla (preemaker) with handle |
Natural red rubber with aluminum handle |
Availability of other types of polyurethane in different hardnesses and also three-ply
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.
DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels
|
Code |
KILN DRYER FOR
CERAMIC LABORATORY |
Number of drawers
and useful inside cm.
|
External dimensions cm. |
|
ARCDRYCER7 |
DRYCER 7 |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER7CR |
DRYCER 7-W |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER5 |
DRYCER 5 |
5 (85×140) |
162x100xH120 |
|
ARCDRYCER5CR |
DRYCER 5-W |
5 (85×140) |
162x100xH120 |
(5-W and 7-W models are equipped with wheels)
Instruments for measuring the conductivity of liquids.
Various models available.
