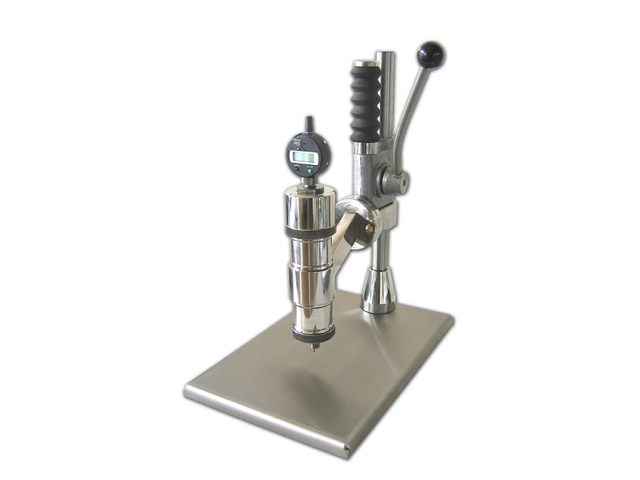

Instrument suitable for determining the depth of penetration of a tip with a flat head on pressed and unfired ceramic tiles. Available in various versions: – With mechanical or digital comparator – For sizes up to 40×40 cm and up to 70x70cm
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
Laboratory ovens suitable for cooking with rapid cycles.
The temperature and cooking cycle are controlled by a microprocessor programmer mod. K1PX with which it is possible to set 4 cooking cycles composed, each, of 8 STEPS.
Optional: Indirect forced cooling with automatic chimney control included
Optional: Direct forced cooling with automatic chimney control included
Optional: Automatic chimney management
Optional: Automatic management of the controlled atmosphere
Optional: Automatic vacuum management (Vacuum pump included)
Optional: PC management software (PC excluded)
Various models available (firing zone size and maximum temperature).
Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.
DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels
|
Code |
KILN DRYER FOR
CERAMIC LABORATORY |
Number of drawers
and useful inside cm.
|
External dimensions cm. |
|
ARCDRYCER7 |
DRYCER 7 |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER7CR |
DRYCER 7-W |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER5 |
DRYCER 5 |
5 (85×140) |
162x100xH120 |
|
ARCDRYCER5CR |
DRYCER 5-W |
5 (85×140) |
162x100xH120 |
(5-W and 7-W models are equipped with wheels)
