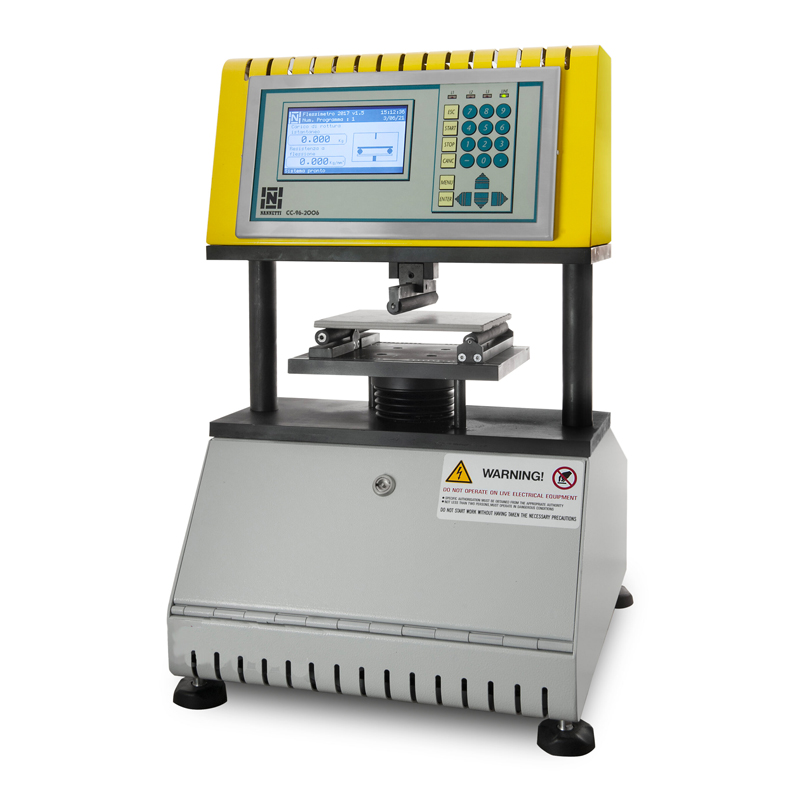

Bench instrument, in painted steel powder, provided with precision electronics for the determination of the breaking load (max.load) on ceramic or similar specimens. TECHNICAL FEATURES – 220 kg load cell (with accuracy of 10gr. up full scale) – Knives diameter: 15 mm – Minimum tile size: 30×60 mm – Maximum tile size: 60×210 mm – Electromechanical drive – Programmable double speed of the upper knife (return and work) – Programmable applied load
Gauges suitable for measuring the diameter of nozzles for burners, atomizers, etc.
Various sizes available.
Various models with different accuracy and range.
Common features:
– Automatic tare over the entire range.
– Serial RS232 interface as standard.
– Filters for weighing in particular conditions and for dosing
– Selectable measurement units.
– LCD display with backlight.
– Operation with external power supply or internal rechargeable battery both supplied.
Power supply 230V 50/60 Hz
The oven consists of a sturdy steel structure which encloses the thermal insulation consisting of bricks low density refractories and preformed fiber sheets highly temperature and shock resistant ceramic thermal.
The oven comprises zones having different characteristics and precisely:
In all models the heating elements in the cooking zone are in Silicon Carbide allowing these furnaces to be able to operate up to a maximum temperature of 1330 ° C
Optional: Management of the oven using a PC
Various models available (maximum sample size and number of zones).
Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.
DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels
|
Code |
KILN DRYER FOR
CERAMIC LABORATORY |
Number of drawers
and useful inside cm.
|
External dimensions cm. |
|
ARCDRYCER7 |
DRYCER 7 |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER7CR |
DRYCER 7-W |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER5 |
DRYCER 5 |
5 (85×140) |
162x100xH120 |
|
ARCDRYCER5CR |
DRYCER 5-W |
5 (85×140) |
162x100xH120 |
(5-W and 7-W models are equipped with wheels)
