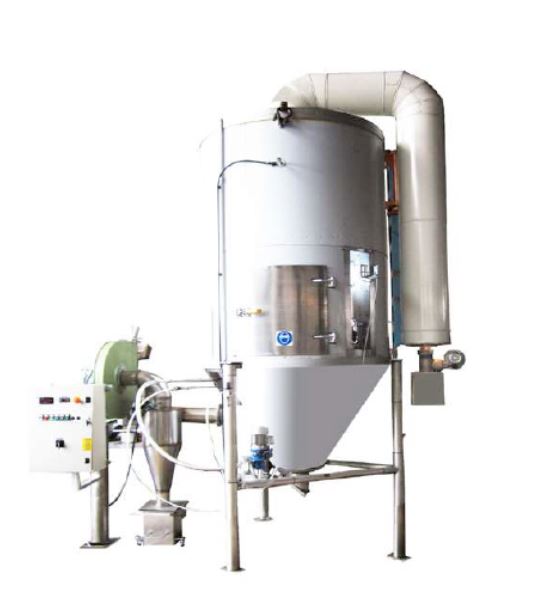

Laboratory instrument or small production unit to produce spray-dried powder from slip. The slip is being sucked via one pump and sent to a nozzle where it is mixing with compressed air which shall generate a floating fog inside the chamber. The hot air– generated by a gas firing unit – shall dry up the fog and produce a powder which shall decant into the bottom cone-shaping of the unit. As soon as the working cycle is over the product can be sucked off through one fan.
Sorry, but this article is only available in English.
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.
DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels
|
Code |
KILN DRYER FOR
CERAMIC LABORATORY |
Number of drawers
and useful inside cm.
|
External dimensions cm. |
|
ARCDRYCER7 |
DRYCER 7 |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER7CR |
DRYCER 7-W |
7 (85×140) |
162x100xH120 |
|
ARCDRYCER5 |
DRYCER 5 |
5 (85×140) |
162x100xH120 |
|
ARCDRYCER5CR |
DRYCER 5-W |
5 (85×140) |
162x100xH120 |
(5-W and 7-W models are equipped with wheels)
Water veil cabin in stainless steel with water recirculation dust suppression system.
Useful working width: 97 × 70 cm in depth.
0.5 Hp water recirculation pump.
Complete with settling tank for recirculation and waste water disposal.
Power supply 400 V three-phase, 50 Hz.
