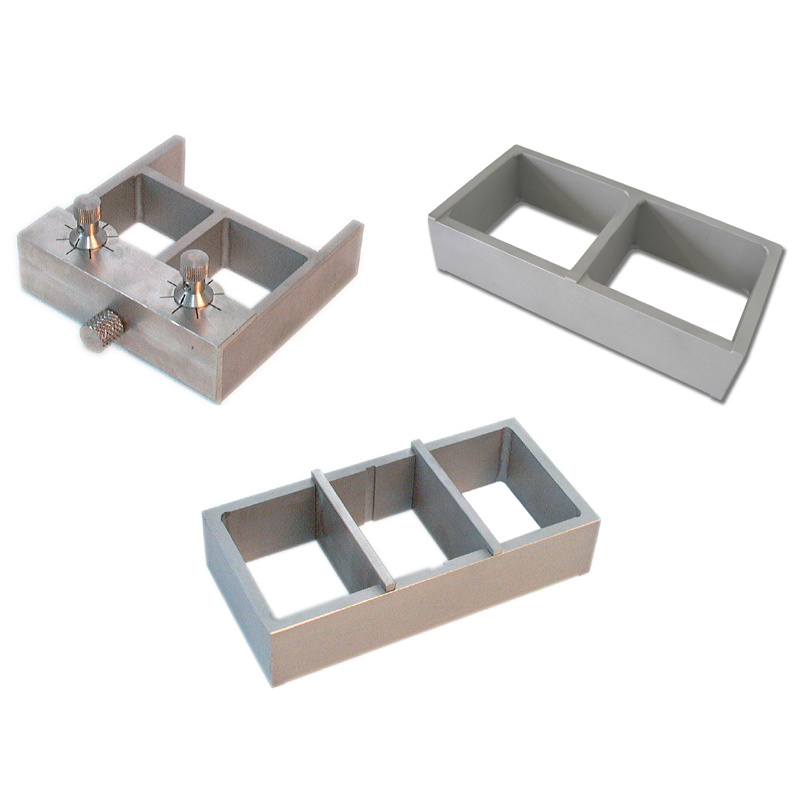

MANUAL ORIFICES
For glaze laying tests. Various models: – Adjustable: with micrometric screws for fine adjustment of the thickness of the enamel (from 0 to 3 mm) – Simple with 2/3 chambers: available with different thicknesses (0.4, 0.6, 0.8 and 1 mm) and movable shutters (to obtain 2 or 3 chambers). – Simple with 2 chambers: two different sizes that can be used simply by inverting the die itself (1 – 0.8 mm and 0.6 – 0.4 mm).
The oven consists of a sturdy steel structure which encloses the thermal insulation consisting of bricks low density refractories and preformed fiber sheets highly temperature and shock resistant ceramic thermal.
The oven comprises zones having different characteristics and precisely:
- smoke entry and evacuation area
- preheating area
- cooking zone
- cooling zone
In all models the heating elements in the cooking zone are in Silicon Carbide allowing these furnaces to be able to operate up to a maximum temperature of 1330 ° C
Optional: Management of the oven using a PC
Various models available (maximum sample size and number of zones).
Water veil cabin in stainless steel with water recirculation dust suppression system.
Useful working width: 97 × 70 cm in depth.
0.5 Hp water recirculation pump.
Complete with settling tank for recirculation and waste water disposal.
Power supply 400 V three-phase, 50 Hz.
The PEIBOX/B is the perfect booth to view the specimens abraded according to the PEI method, compliant with the ASTM C1027-99 and UNI EN ISO 10545-7 standards.
The instrument is supplied with the intensity of regulation adjusted in accordance with the standard.
Perfect complement to our AP-18, PEI100-300 and PEI3 abrasive meters.
PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces
Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.
Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.
Electronics with inverter for precise regulation of the number of revolutions.
Model with 1 test group.
Model with 3 test groups.
For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
