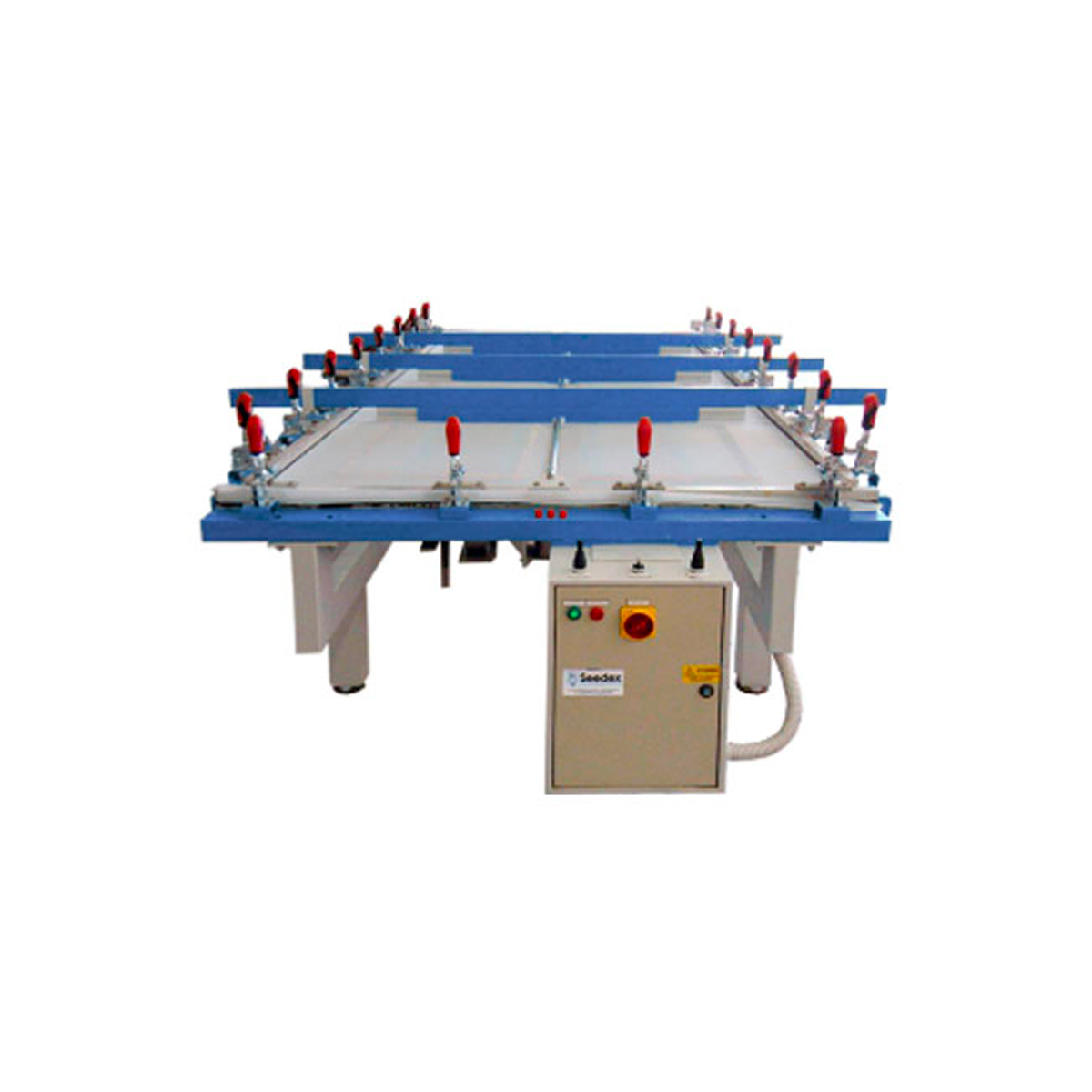

MOTORIZED STRETCHING MACHINE TMTE
Made by painted stainless steel, is a motorized version model with manual closing clamps. All movements are effected by 3 motors drived by a control panel ; Complete of n ° 3 pression bars and all accessories. The TMTE “multistretcher” is a mesh tensioning unit for the professionals. It allows stretching mesh on many frames of different formats and profiles at the same time. The waste of mesh is minimised and the most economical production is guaranteed. The frames can be stretched straight or at any angle with synthetic mesh, metallised polyester as well as stainless steel mesh to produce reproducible stencils for all printing purposes. Due to the motor driven movements of all 4 sides, a parallel, even mesh tension of warp and weft is guaranteed; the uniform stretching over the entire area is maintained by the clamps on all four sides which are riding independently on roller bearings. Frame contact with the mesh again is motor driven for easy handling.
| CODE | NAME AND MODEL | MODEL | USEFUL SIZE CM. | OVERALL DIMENSION CM. |
| AQSTMTE1330PM | MOTORIZED STRETCHING MACHINE |
TMTE 130X300 |
130X300 |
|
| AQSTMTE1630PM |
MOTORIZED STRETCHING MACHINE |
TMTE 160X300 |
160X300 |
|
| AQSTMTE1830PM |
MOTORIZED STRETCHING MACHINE |
TMTE 180X300 |
180X300 |
Laboratory work table, indispensable for the operator during the preparation of screen printing frames and cylinders, to place tools, product cans, frames, etc. on them.
DESCRIPTION AND FEATURES:
Sturdy painted steel structure.
Upper and lower top in bilaminated wood.
Dimensions 200x100x8
ARTICLE WITH CUSTOMER CUSTOMIZABLE FEATURES AND DIMENSIONS
Stretching table with pneumatic clamps, allows the stretching of fabrics on to the screen printing frames with the required degree of tension.
This equipment can be used to tension various types of fabric such as polyester, nylon and steel.
The special characteristic of this stretching table is that the pneumatic clamps are mobile and can be positioned as required in order to tension even just one frame for each tensioning operation.
This stretching table allows to the operator to use also the small rest of fabrics that otherwise could be not useable.
| CODE | PNEUMATIC STRETCHER | TABLE SIZE CM. | PRODUCTION CAPACITY N° OF FRAMES OF EXTERNAL SIZE CM…. |
| AQSTPP16 | MODEL TPP 16 | 185X185XH90 | 1-100X100, OR 2-100X50, OR 4-50X50 |
|
AQSTPP18 |
MODEL TPP 18 |
180X200XH90 |
1-130X105, OR 2-105X65, OR 4-50X50 |
|
AQSTPP20 |
MODEL TPP 20 |
200X200XH90 |
1-150X105, OR 2-105X75, OR 4-75X50 |
|
AQSTPP22 |
MODEL TPP 22 |
210X210XH90 |
1-150X130, OR 2-130X75, OR 4-75X75 |
|
AQSTPP24 |
MODEL TPP 24 |
210X230XH90 |
1-150X150, OR 2-150X75, OR 4-75X75 |
Seedex photoexposer is a three-function machine for drying and exposing screen printing frames.
MACHINE’S DESCRIPTION AND CHARACTERISTICS:
Painted steel structure
The machine is equipped with a dryer with drawers located in the bottom part of the machine, with a pneumatic press in the central part, and a halogen lamp located in the upper part.
The Pneumatic press is available in 2 versions:
manual opening (model TC) and
automatic opening (model TC-A);
Dryer with 3 drawers sliding on bearings to dry photosensitive emulsion before exposure,
Completed with a UV ray protection system consisting of a rigid casing with a self-winding front curtain and sliding side panels for inspection.
The control panel consists of a 29 channel digital computer that can control and store exposure times, vacuum times, and the drying kiln temperature and display the number of hours the bulb has been operating in order to monitor its lifetime.
Exposure compensating light with photocell
A vacuum meter is installed on the control panel that allows the pressure control in the vacuum table
The cooling system include preventing overheating of electrical components
Metal-halogen lamp in 2 versions: 2000/5000 W or 3500/7000 W
POWER SUPPLY
400 V – 50 Hz (3 phases + earth) – 10000 W, with variations possible on request
RECOMMENDED SPARE PARTS
halogen bulb 5000 or 7000 W depending on the models
rubber mat with a sealed edge sized to the pneumatic press
|
CODE NUMBER |
PHOTOEXPOSER TC (MANUAL PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTC1 |
PHOTOEXPOSER TC 1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTC2 |
PHOTOEXPOSER TC 2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTC3 |
PHOTOEXPOSER TC 3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTC4 |
PHOTOEXPOSER TC 4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTC5 |
PHOTOEXPOSER TC 5 |
140X220 |
120X200 |
258X178X300 H |
|
CODE NUMBER |
PHOTOEXPOSER TC-A (AUTOMATIC PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTCA1 |
PHOTOEXPOSER TC-A1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTCA2 |
PHOTOEXPOSER TC-A2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTCA3 |
PHOTOEXPOSER TC-A3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTCA4 |
PHOTOEXPOSER TC-A4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTCA5 |
PHOTOEXPOSER TC-A5 |
140X220 |
120X200 |
258X178X300 H |
Used for manual development of flat and rotary printing screens. Using its powerful jet of water is possible to remove the exceeding emulsion after having applied the product STRIPPER.
CHARACTERISTICS OF USE
The Blue Clean pump is used in combination with PVC TANK FOR DEVELOPMENT;
Blue Clean features a 3 piston pump with a pressure of 120 bar and a 1.5 HP silenced engine.
POWER SUPPLY 220 volts – 50 Hz Consumption 2.5 Kw
|
CODE |
NAME |
MODEL |
|
AQSPBC620AR |
BLUE CLEAN PUMP |
620 AR |
