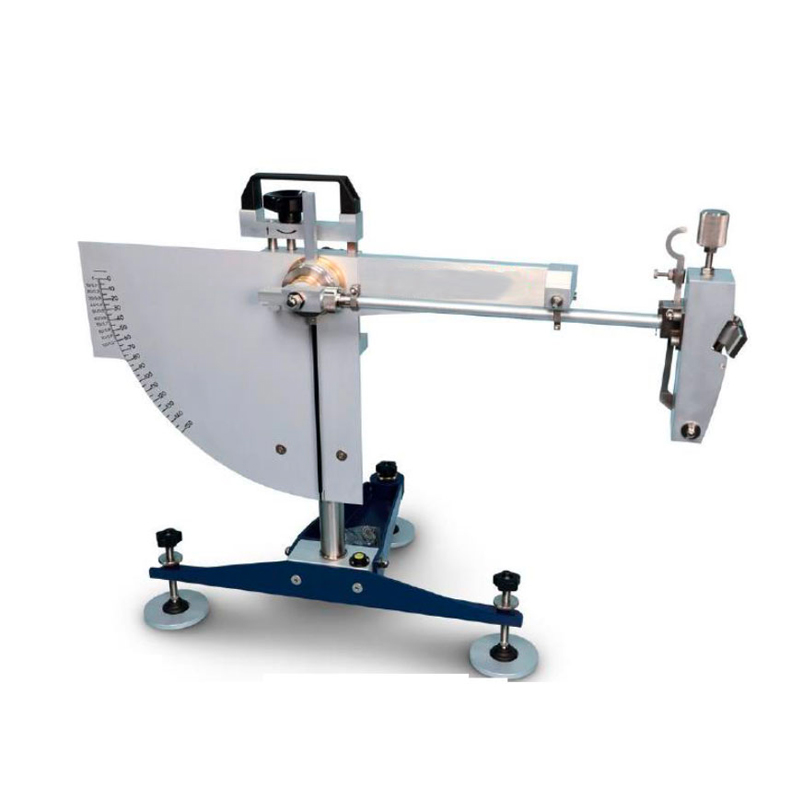

PENDULUM SLIDE GAUGE
Instrument for determining the friction resistance. The pendulum is based on the Izod principle
Standardized systems for crazing resistance tests on ceramic glazed tiles.
UNI EN ISO 10545-11 standard
System designed to subject whole tiles to high pressure water vapor in an autoclave.
Tiles on which the presence of crazing will be verified by laboratory tests.
In stainless steel.
Power supply 400 V, 50 Hz.
Automatic test cycle.
Available autoclaves of different sizes and applied pressure.
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Equipped with 6 independent heating cells;
- Possibility of setting and managing gradients of up to 15 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
- Possibility to manage the oven even from a distance.
- Firing area size 150x600x110 mm
For the percentage determination of calcium carbonate in clays used in the ceramic and brick industry, and in other products such as limestone, marl, earth in general, sands, etc.
CALCIMETER PIZZARELLI MODEL
Consisting of base, graduated volume tank (0/100 cc), breather, and upper reagent tank, 5 cc sample holder test tube.
Total height 680 mm.
Net weight 0.7 kg
CALCIMETER DIETRICH- FRÜLING MODEL
Consisting of a base with metal rods, sample bottle, reagent holder tube, graduated glass beaker for cooling water, cooling coil, graduated volume tank (0/200 cc) and leveling tank or vent water collection.
Dimensions 400x220x1000 mm.
Net weight 12 kg
Laboratory instrument suitable for carrying out tests according to the P.E.I method, European Standards, Standard EN154, on three samples simultaneously.
For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
