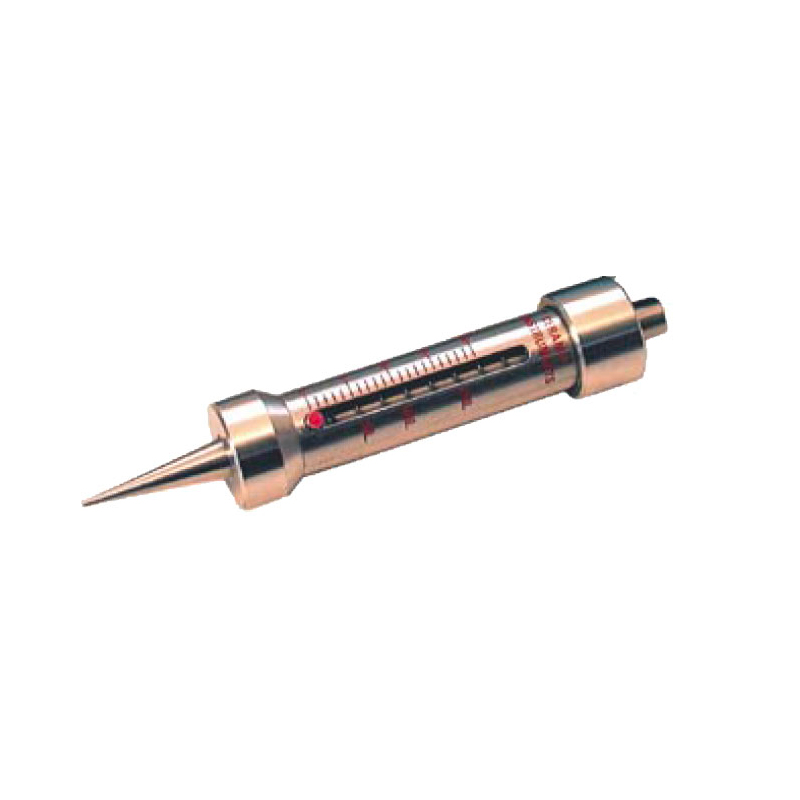

PENETROMETER DUROMETERS

Back to products

Instrument suitable for determining the hardness of extruded clays (for bricks, tiles, terracotta tiles, etc.) and clays in blocks (artistic use and tableware). SOIL DUROMETERS, PENETROMETERS Portable instruments for simple compression measurement with free lateral expansion.

Download pdf

GRADIENT OVEN GR20-12

Ceramic and Quality Control Lab, Gradient ovens

Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.

Features:

Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
Possibility to program the cooling (optional)
Management of the cooking cycle entrusted to a computer equipped with a touch screen
Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
Possibility of firing samples with a maximum size of 40 x 80 mm.

CALCIUM CARBONATE TESTERS

Calcimeter, Ceramic and Quality Control Lab

For the percentage determination of calcium carbonate in clays used in the ceramic and brick industry, and in other products such as limestone, marl, earth in general, sands, etc.

CALCIMETER PIZZARELLI MODEL

Consisting of base, graduated volume tank (0/100 cc), breather, and upper reagent tank, 5 cc sample holder test tube.

Total height 680 mm.

Net weight 0.7 kg

CALCIMETER DIETRICH- FRÜLING MODEL

Consisting of a base with metal rods, sample bottle, reagent holder tube, graduated glass beaker for cooling water, cooling coil, graduated volume tank (0/200 cc) and leveling tank or vent water collection.

Dimensions 400x220x1000 mm.

Net weight 12 kg
