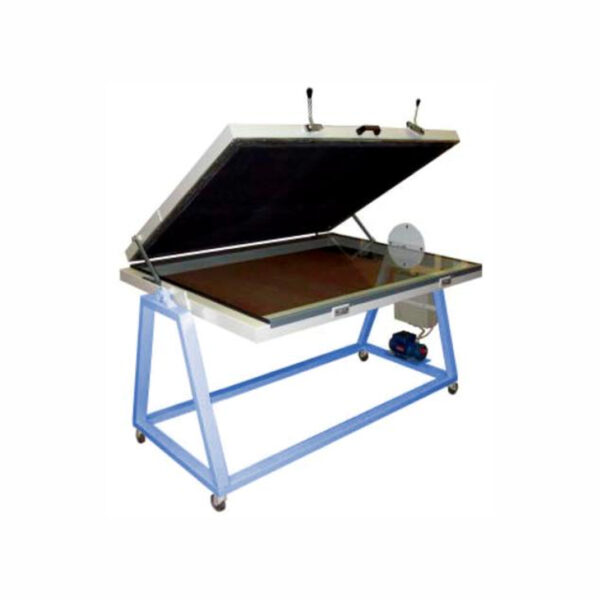

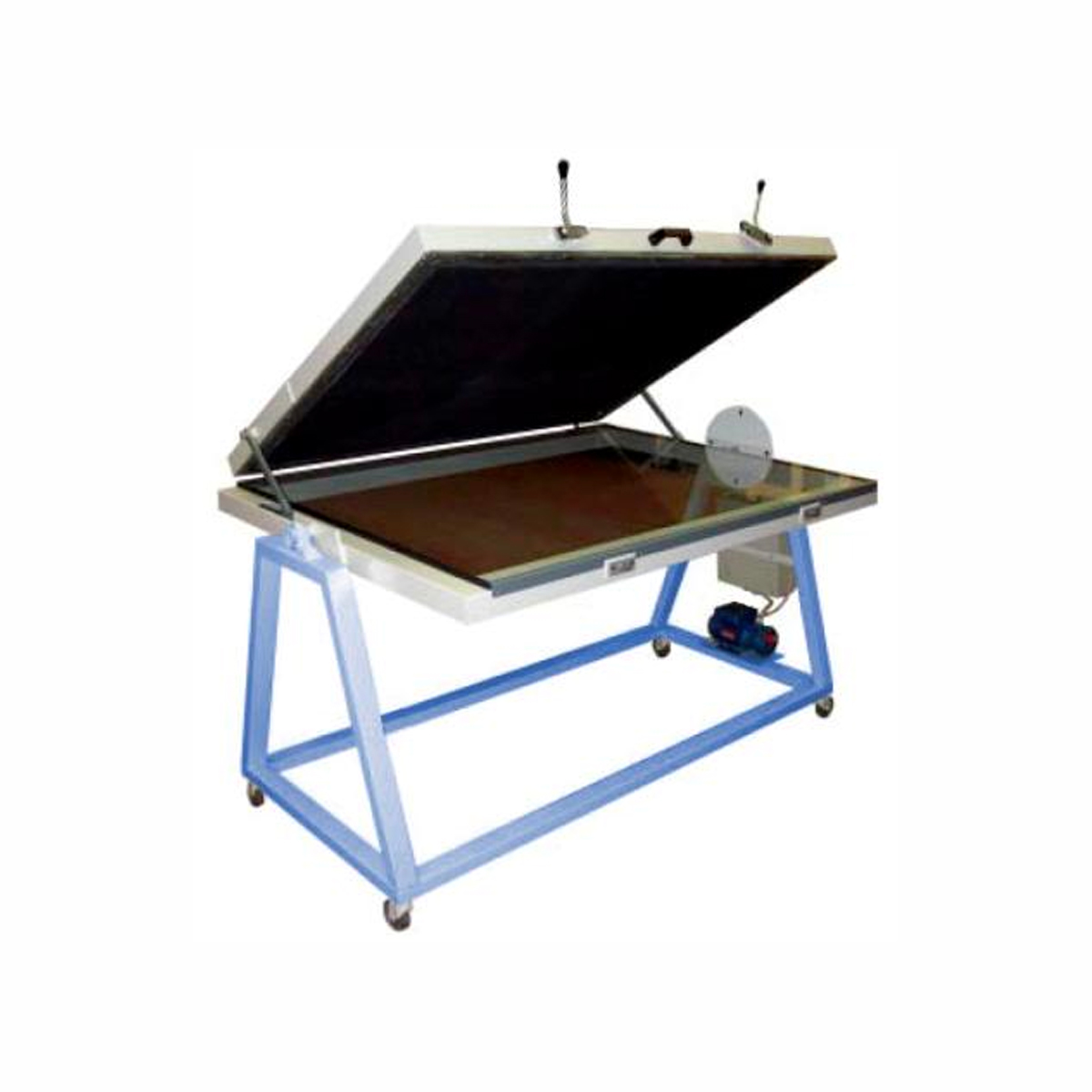

PNEUMATIC PRESS TP
This machine is useful to expose, under halogen UV lamp 5000 or 7000 Watts, the screen printing frames. TECHNICAL FEATURES Painted steel structure; book system opening; Compressed air 6/8 BAR is needed for operating; Crystal glass is supported by a metal frame. Complete of electric vacuum pump; Power supply: 220 v – 50 Hz
|
CODE |
NAME |
MODEL |
USEFUL FRAME SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSTP7010 |
PNEUMATIC PRESS |
TP-0710 |
70X100 |
90X155 |
|
AQSTP1014 |
PNEUMATIC PRESS |
TP-1014 |
100X140 |
120X195 |
|
AQSTP1216 |
PNEUMATIC PRESS |
TP-1216 |
120X160 |
140X215 |
|
AQSTP1518 |
PNEUMATIC PRESS |
TP-1518 |
150X180 |
170X235 |
|
AQSTP1525 |
PNEUMATIC PRESS |
TP-1525 |
150X250 |
170X305 |
|
AQSTP2030 |
PNEUMATIC PRESS |
TP-2030 |
200X300 |
220X355 |
Analog instrument suitable for measuring the tension of the fabric on the screen printing frames during the tensioning phase.
It allows a simple and reliable system to check the tension in the different weaving directions, by direct reading.
The tensiometer operates mechanically, does not require batteries or power cables.
It can be used with all types of fabric used in screen printing.
Solid structure in painted steel, fixed to the ground, allows the user to manually apply the emulsion to the screen printing screens in a simple and accurate way.
Dimensions: 60x34x230 cm
Seedex Dryer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C)
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 50°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions (other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power
RECOMMENDED OPTIONALS
Timer for automatic start and stop
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
The Seedex coating machine is cost efficient, ideal for smaller size frames for universal printing applications.
The infinitely adjustable speed, the extremely smooth movement of the coating carriage and the possibility of selecting the number of coating passes either side will result in depositing reproducible amounts of emulsion for perfect stencils. The Seedex coating machine grants a perfect reproducibility of the coating layer structure coating tolerance +/- 1 micron.
DESCRIPTION
Very user-friendly
Supplied with a full touch screen panel
Adjustable stepless speed
Coat build up from one or two sides
The CPU can store 50 different customized programs
The cross beam can be adapted simply to the required frame format
The machine is supplied installed and is supplied with a pair of coating troughs (length according to desire)
TECHNICAL DATA :
Electrical connection: 230 V – 50/60 hz (other voltage on request)
Pneumatic connection: 6 bar
Control: maintenance-free compact control (SPS) with touch screen panel language change-over by push a button
OPTIONS :
lower frameholder movable
double coating with one clamp per frame
double coating with two clamps per frame
|
CODE |
NAME |
MODEL |
USEFUL SIZE CM |
|
AQSPEM1515 |
AUTOMATIC COATING MACHINE |
SP-B 1515 |
150X150 |
|
AQSPEM1520 |
AUTOMATIC COATING MACHINE |
SP-B 1520 |
150X200 |
|
AQSPEM1525 |
AUTOMATIC COATING MACHINE |
SP-B 1525 |
150X250 |
