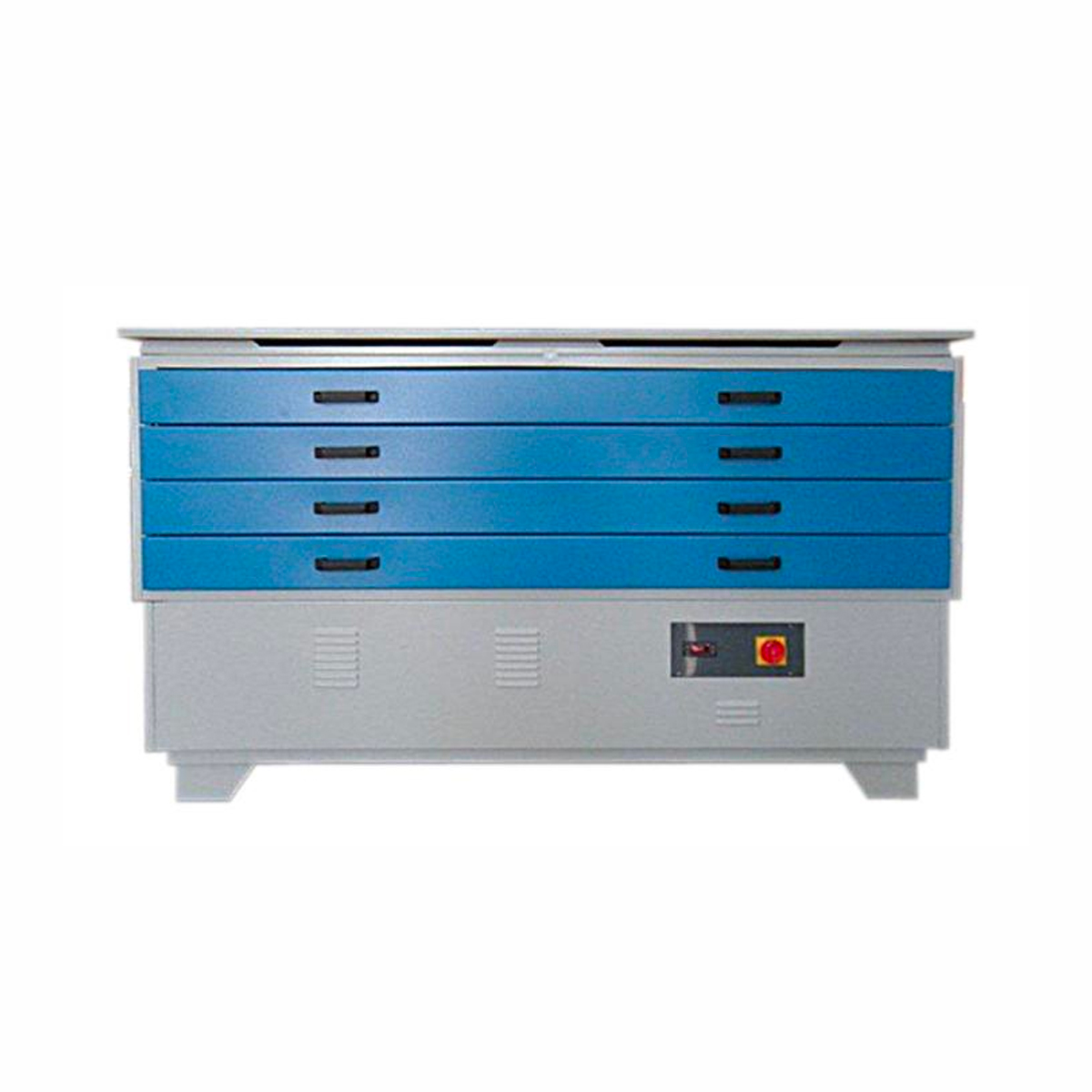

POLYMERIZER KILN FP
Seedex polymerizer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C) or for hardening or polymerizing ( after having applied a proper chemical hardener ) at a higher temperature (55 – 65°C). TECHNICAL FEATURES Strong varnished steel structure; Operating with hot air fan-driven; Maximum operating temperature 100°C; Temperature control by a thermostat with digital display; Sliding drawers on bearings; 4 or 6 drawers standard versions (other models or dimensions could be available on request) Upper supporting surface in laminate wood; Electric power supply: 380 V – 3 phases + earth -50 Hertz Installed power 9 kW RECOMMENDED SPARE PARTS Timer for automatic start and stop Heating elements RECOMMENDED HARDENER Gelhard HD
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
Stretching table with pneumatic clamps, allows the stretching of fabrics on to the screen printing frames with the required degree of tension.
This equipment can be used to tension various types of fabric such as polyester, nylon and steel.
The special characteristic of this stretching table is that the pneumatic clamps are mobile and can be positioned as required in order to tension even just one frame for each tensioning operation.
This stretching table allows to the operator to use also the small rest of fabrics that otherwise could be not useable.
| CODE | PNEUMATIC STRETCHER | TABLE SIZE CM. | PRODUCTION CAPACITY N° OF FRAMES OF EXTERNAL SIZE CM…. |
| AQSTPP16 | MODEL TPP 16 | 185X185XH90 | 1-100X100, OR 2-100X50, OR 4-50X50 |
|
AQSTPP18 |
MODEL TPP 18 |
180X200XH90 |
1-130X105, OR 2-105X65, OR 4-50X50 |
|
AQSTPP20 |
MODEL TPP 20 |
200X200XH90 |
1-150X105, OR 2-105X75, OR 4-75X50 |
|
AQSTPP22 |
MODEL TPP 22 |
210X210XH90 |
1-150X130, OR 2-130X75, OR 4-75X75 |
|
AQSTPP24 |
MODEL TPP 24 |
210X230XH90 |
1-150X150, OR 2-150X75, OR 4-75X75 |
Complementary accessories.
Set for use during the preparation of flat and round screens
|
CODE |
DESCRIPTION AND USE |
| AQSSEEDKIT | SEEDKIT – ACCESSORIES FOR SCREEN MAKING LABORATORY (COMPLETE SET OF THE BELOW ITEMS) |
| ARCARG1010L05 | GRADUATED CARAF 10X10 L. 0.5 (TO DOSE LIQUID PRODUCTS) |
| ARCCGB817ML100 | SHORT GRADUATED CYLINDER 817 – ML 100 (TO MEASURE CHEMICALS) |
| ARCCGB820ML250 | SHORT GRADUATED CYLINDER 820 – ML 250 (TO MEASURE CHEMICALS) |
| AGDCARTIGLIO | CLAW CUTTER (TO CUT FILMS, STRETCHED FRAMES, SCREENS, ETC.) |
| AGDCD400PCLR | CUTTER D400 P WITH SPARE BLADES (TO CUT FILMS, STRETCHED FRAMES, SCREENS, ETC.) |
| AGDDISPNA3366 | ADHESIVE ROLL TAPE DISPENSER 33/66M (DISPENSER FOR ADHESIVE TAPE) |
| ARCFLV3M | FLEXOMETER VOLA 3 METER LENGTH (FOR SEVERAL MEASUREMENTS) |
| AGDFORLAB6P | 6 INCHES LASER SCISSOR (TO CUT FABRICS, FILMS, DESIGNS ON PAPER, ETC.). |
| ARCGGAA | RUBBER ANTI-ACID GLOVES (TO WEAR WHEN USING CORROSIVE OR FLAMMABLE PRODUCTS) |
| AGDKITLAMR9MM | KIT 10 SPARE BLADES 9 MM FOR CLAW CUTTER (SPARE BLADES FOR CUTTER) |
| AQSLEN1010 | 10X10 MESH COUNTER (TO CONTROL DESIGNS, FILMS, FABRICS OR FINISHED SCREENS) |
| AGDNASCRYCL1966 | ADHESIVE TAPE CRYSTAL CLEAR MM 19X66 MT |
| AQSPELEXP | EXPOSURE CALCULATOR FILM (TO CONTROL ENGRAVING ANGLES) |
| AGDPENSSFBLU | STABILO OH PEN SUPERFINE PERMANENT BLUE (TO WRITING ON FILMS) |
| ARCPPACR | NYLON BRUSH 40 MM ( TO CLEAN OR DEGREASE THE FABRICS) |
| ARCPSB30MM | BLOND BRISTLE BRUSH 30 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCPSN50MM | BLACK BRISTLE BRUSH 50 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCPSN60MM | BLACK BRISTLE BRUSH 60 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCRIGTGRAD80 | T RULER PERSPEX NEUTRAL -MOVING HEAD- GRAD. CM. 80, (TO CONTROL ANGLES AND LINES) |
| AQSSBAN111 | RETOUCHING SPATULA FINE ARTS NO. 111, (FOR FINISHING AND FILLER APPLICATION) |
| ARCSPRZPL500CC | PLASTIC SPRAY BOTTLE 183 – 500 ML (FOR SEVERAL LIQUIDS) |
| ARCSSG | GIANT SYNTHETIC SPONGE (FOR ACCESSORIES OR EQUIPMENT CLEANING) |
Seedex photoexposer is a three-function machine for drying and exposing screen printing frames.
MACHINE’S DESCRIPTION AND CHARACTERISTICS:
Painted steel structure
The machine is equipped with a dryer with drawers located in the bottom part of the machine, with a pneumatic press in the central part, and a halogen lamp located in the upper part.
The Pneumatic press is available in 2 versions:
manual opening (model TC) and
automatic opening (model TC-A);
Dryer with 3 drawers sliding on bearings to dry photosensitive emulsion before exposure,
Completed with a UV ray protection system consisting of a rigid casing with a self-winding front curtain and sliding side panels for inspection.
The control panel consists of a 29 channel digital computer that can control and store exposure times, vacuum times, and the drying kiln temperature and display the number of hours the bulb has been operating in order to monitor its lifetime.
Exposure compensating light with photocell
A vacuum meter is installed on the control panel that allows the pressure control in the vacuum table
The cooling system include preventing overheating of electrical components
Metal-halogen lamp in 2 versions: 2000/5000 W or 3500/7000 W
POWER SUPPLY
400 V – 50 Hz (3 phases + earth) – 10000 W, with variations possible on request
RECOMMENDED SPARE PARTS
halogen bulb 5000 or 7000 W depending on the models
rubber mat with a sealed edge sized to the pneumatic press
|
CODE NUMBER |
PHOTOEXPOSER TC (MANUAL PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTC1 |
PHOTOEXPOSER TC 1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTC2 |
PHOTOEXPOSER TC 2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTC3 |
PHOTOEXPOSER TC 3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTC4 |
PHOTOEXPOSER TC 4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTC5 |
PHOTOEXPOSER TC 5 |
140X220 |
120X200 |
258X178X300 H |
|
CODE NUMBER |
PHOTOEXPOSER TC-A (AUTOMATIC PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTCA1 |
PHOTOEXPOSER TC-A1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTCA2 |
PHOTOEXPOSER TC-A2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTCA3 |
PHOTOEXPOSER TC-A3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTCA4 |
PHOTOEXPOSER TC-A4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTCA5 |
PHOTOEXPOSER TC-A5 |
140X220 |
120X200 |
258X178X300 H |
Metal halide lamp for the photoexposing of flat or round screens treated with UV sensitive photoemulsions
Recommended products: CERAGEL SCD, CERAGEL SK and FLASHGEL SHW
