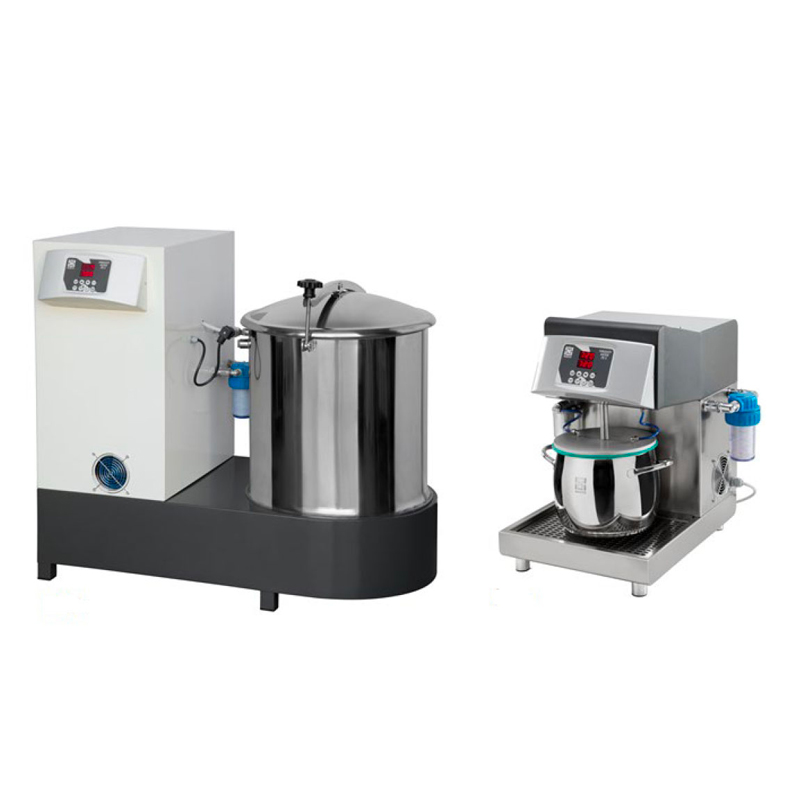

POROSIMETERS PLN and PNE
instrument for determining the apparent porosity of ceramic specimens in accordance with the English B.S.I. and international I.S.O. The method is based on the impregnation with water of the ceramic specimens placed under vacuum so that all the open pores are filled. Available in two versions: Mod. PLN For specimens up to one dimension maximum of 150 x 200 mm Mod. PNE For tiles up to one size maximum of 480 x 480 mm
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
Standardized systems for crazing resistance tests on ceramic glazed tiles.
UNI EN ISO 10545-11 standard
System designed to subject whole tiles to high pressure water vapor in an autoclave.
Tiles on which the presence of crazing will be verified by laboratory tests.
In stainless steel.
Power supply 400 V, 50 Hz.
Automatic test cycle.
Available autoclaves of different sizes and applied pressure.
Laboratory ovens suitable for cooking with rapid cycles.
The temperature and cooking cycle are controlled by a microprocessor programmer mod. K1PX with which it is possible to set 4 cooking cycles composed, each, of 8 STEPS.
Optional: Indirect forced cooling with automatic chimney control included
Optional: Direct forced cooling with automatic chimney control included
Optional: Automatic chimney management
Optional: Automatic management of the controlled atmosphere
Optional: Automatic vacuum management (Vacuum pump included)
Optional: PC management software (PC excluded)
Various models available (firing zone size and maximum temperature).
PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces
Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.
Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.
Electronics with inverter for precise regulation of the number of revolutions.
Model with 1 test group.
Model with 3 test groups.
For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
