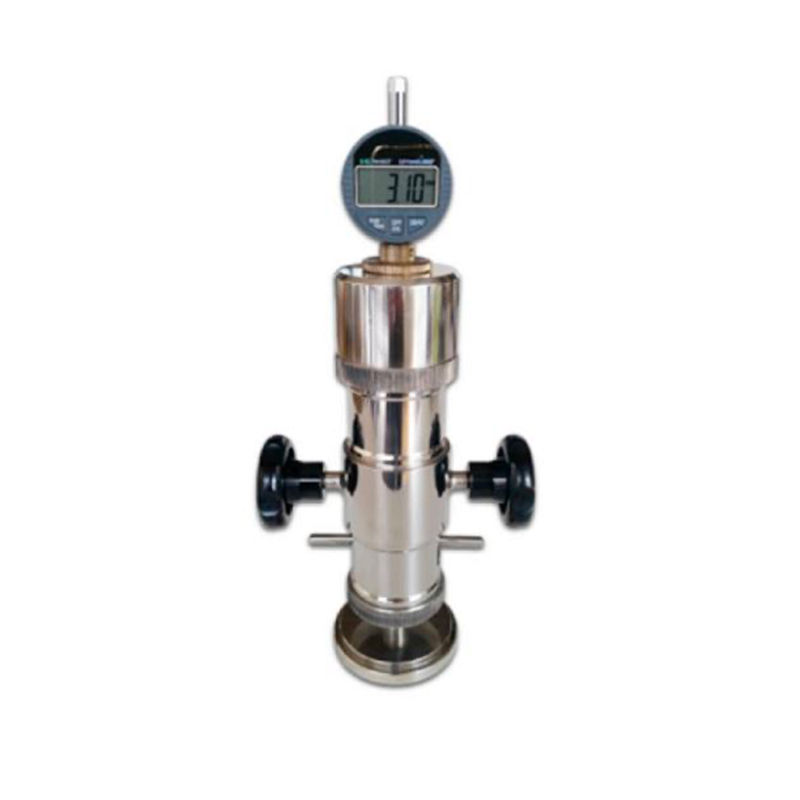

PORTABLE DUROMETER DM34PE
Conceptually similar to DM34 Durometer but in portable version and equipped with digital centesimal LCD comparator. Entirely built in stainless materials such as stainless steel and brass. Supplied with 5 flat head tips, two springs of different hardness and convenient carrying case.
Laboratory oven built with a steel structure painted in fire at 180 ° C with paints scratch-resistant epoxy.
Thermal insulation is provided in ceramic fiber and low-density refractory bricks.
For the CVK-N and CVK-N / S models, the heating parts are composed of Kanthal-type spiral-wound electric resistors.
For the CVK-N / SCS model the heating parts are composed of silicon carbide electric resistors.
With this oven, it is possible to simulate the entire cooking curve of a continuous industrial oven.
Oven equipped with an easily settable control panel.
Various models available (firing volume and maximum temperature).
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Equipped with 6 independent heating cells;
- Possibility of setting and managing gradients of up to 15 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
- Possibility to manage the oven even from a distance.
- Firing area size 150x600x110 mm
Various models with different accuracy and range.
Common features:
– Automatic tare over the entire range.
– Serial RS232 interface as standard.
– Filters for weighing in particular conditions and for dosing
– Selectable measurement units.
– LCD display with backlight.
– Operation with external power supply or internal rechargeable battery both supplied.
Power supply 230V 50/60 Hz
PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces
Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.
Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.
Electronics with inverter for precise regulation of the number of revolutions.
Model with 1 test group.
Model with 3 test groups.
For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
