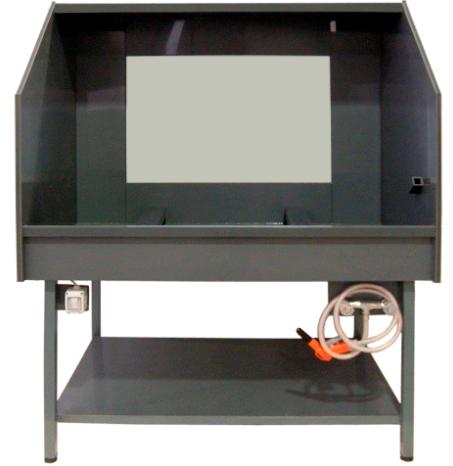

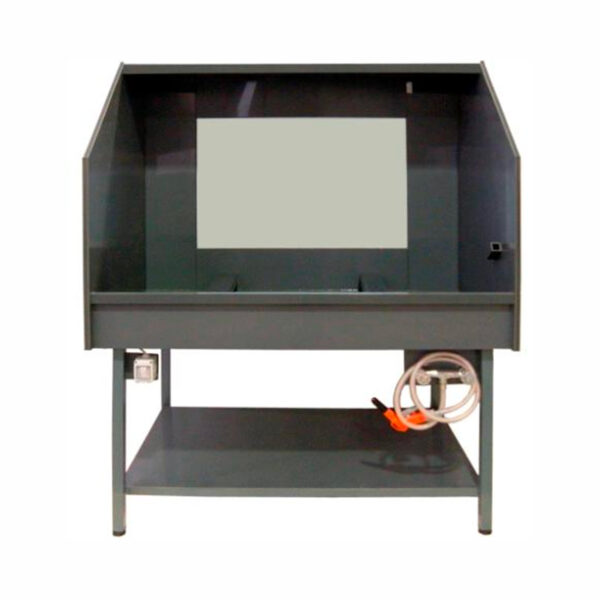

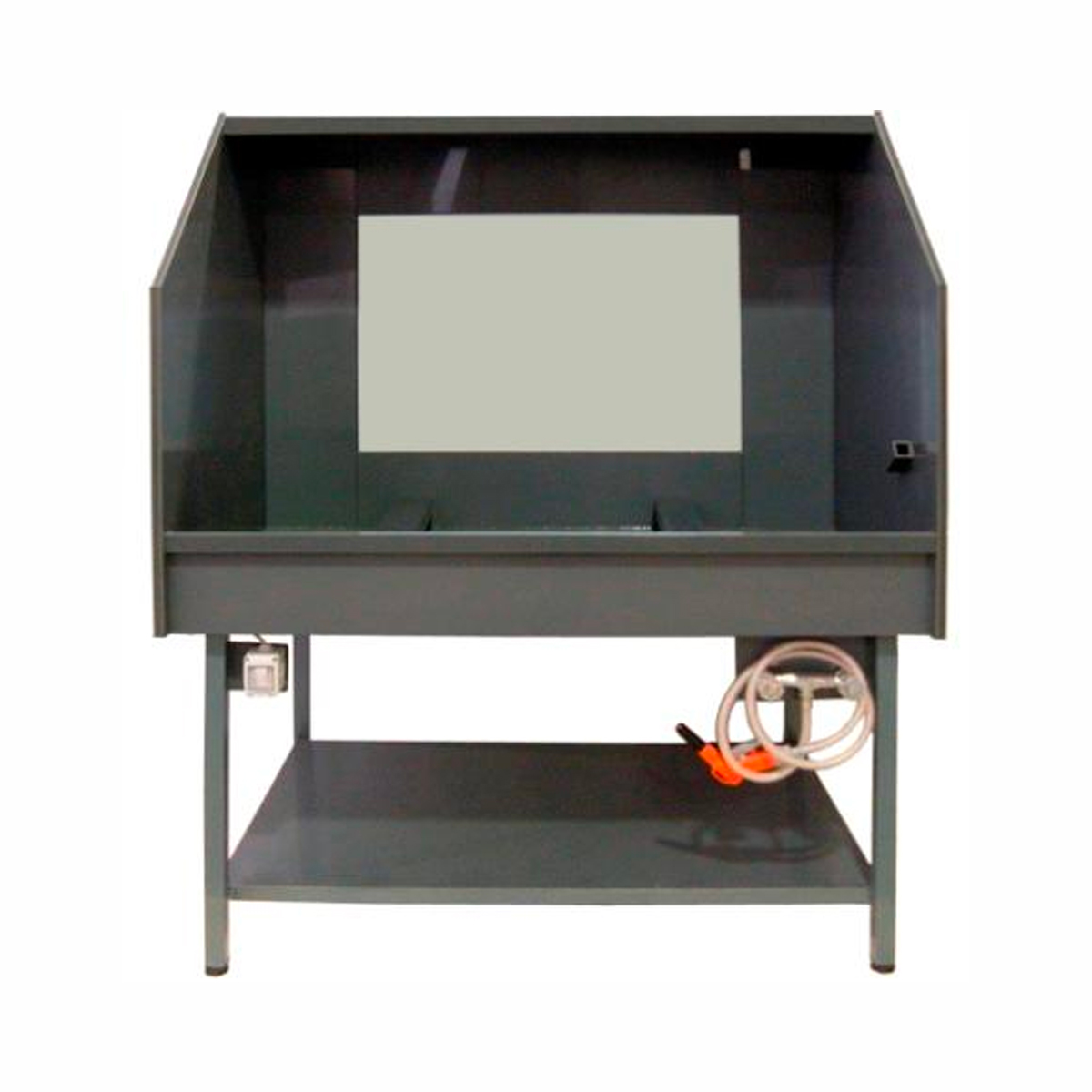

PVC TANK CV and SV
The PVC tank is used for manual processing flat or round screens after the exposure step. RECOMMENDED ACCESSORIES Water jet pump; water vacuum extractor TECHNICAL CHARACTERISTICS The supporting frame is made of painted steel The tank is made of acid-resistant PVC, electro-welded with robust edges Provided with spray unit and tap fitting Frame or cylinder supporting grid Central lighting viewer (CV models) for processing control AVAILABLE MODELS SV without the central viewer CV with the central viewer CVRA (on demand) with water re-cycling system and bottom wheel carriage tank
| CODE | NAME | MODEL | USEFUL SIZE CM. | OVERALL DIMENSIONS CM. |
|
AQSVCV070100 |
PVC DEVELOPING TANK |
CV-0710 |
70X100 |
106X95X176 H. |
|
AQSVSV070100 |
PVC DEVELOPING TANK |
SV-0710 |
70X100 |
106X95X176 H. |
|
AQSVCV075200 |
PVC DEVELOPING TANK |
CV-0752 |
75X200 |
205X100X222 H. |
|
AQSVSV075200 |
PVC DEVELOPING TANK |
SV-0752 |
75X200 |
205X100X222 H. |
|
AQSVCV100140 |
PVC DEVELOPING TANK |
CV-1014 |
100X140 |
145X125X185 H. |
|
AQSVSV100140 |
PVC DEVELOPING TANK |
SV-1014 |
100X140 |
145X125X185 H. |
|
AQSVCV120160 |
PVC DEVELOPING TANK |
CV-1216 |
120X160 |
165X145X185 H. |
|
AQSVSV120160 |
PVC DEVELOPING TANK |
SV-1216 |
120X160 |
165X145X185 H. |
Seedex, in collaboration with its partner Extris proposes you a complete range of chemical products for the screen printing. Top quality prints result in market success.
With EXTRIS products, you can be certain of the quality in your printing. You can find the right product for every step of your screen-printing workflow, beginning with the pre-treatment and ending up with the cleaning.
Extris products are of the highest quality, also from an ecological viewpoint!
Seedex polymerizer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C) or for hardening or polymerizing ( after having applied a proper chemical hardener ) at a higher temperature (55 – 65°C).
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 100°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions
(other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power 9 kW
RECOMMENDED SPARE PARTS
Timer for automatic start and stop
Heating elements
RECOMMENDED HARDENER
Gelhard HD
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
Made by painted stainless steel, with manual closing clamps.
All movements are effected by 2 driving handwheels plus the beam’s one;
Complete of n ° 3 pression bars and all accessories.
The TME “multistretcher” is a mesh tensioning unit for the professionals.
It allows stretching mesh on many frames of different formats and profiles at the same time.
The waste of mesh is minimized and the most economical production is guaranteed.
The frames can be stretched straight or at any angle with synthetic mesh, metallised polyester as well as stainless steel mesh to produce reproducible stencils for all printing purposes.
Due to the handwheels and beam movements of all 3 sides, a parallel, even mesh tension of warp and weft is guaranteed; the uniform stretching over the entire area is maintained by the clamps on all three sides which are riding independently on roller bearings.
Frame contact with the mesh again is manually driven for easy handling.
| CODE | NAME | MODEL | USEFUL FRAME SIZE CM. | OVERALL DIMENSION CM. |
| AQSTME1330PM | MANUAL STRETCHING MACHINE | TME 130X300 |
130X300 |
390X186XH112 |
|
AQSTME1630PM |
MANUAL STRETCHING MACHINE |
TME 160X300 |
160X300 |
390X216XH112 |
|
AQSTME1830PM |
MANUAL STRETCHING MACHINE |
TME 180X300 |
180X300 |
390X236XH112 |
|
AQSTME2030PM |
MANUAL STRETCHING MACHINE |
TME 200X300 |
200X300 |
390X256XH112 |
Dryer-Polymerizer Kiln to dry the screen after emulsion application or to polymerize the same after the application of hardeners.
RECOMMENDED PRODUCTS
Emulsions serie CERAGEL and hardener GELHARD HD
TECHNICAL CHARACTERISTICS
Painted steel structure
External walls completely insulated
Automatic opening and closing roller shutter made by insulated alluminum
Maximum operating temperature 100°C
Complete of internal rack with 10 shelves for positioning of any size of frames
Thermostat with digital display
Drying or polymerizing is made by hot air fans
Several models or sizes are available on demand
|
CODE |
NAME |
MODEL |
USEFUL SIZE OF SHELVES MM. |
OVERALL DIMENSIONS MM. |
|
AQSFOEP135100 |
ROLLER SHUTTER KILN 10 SHELVES |
RS 1351 |
1350X1000 |
MM. 1730X1230X2100 H. |
|
AQSFOEP200120 |
ROLLER SHUTTER KILN 10 SHELVES |
RS 2012 |
2000X1200 |
MM. 2500X1430X2100 H. |
