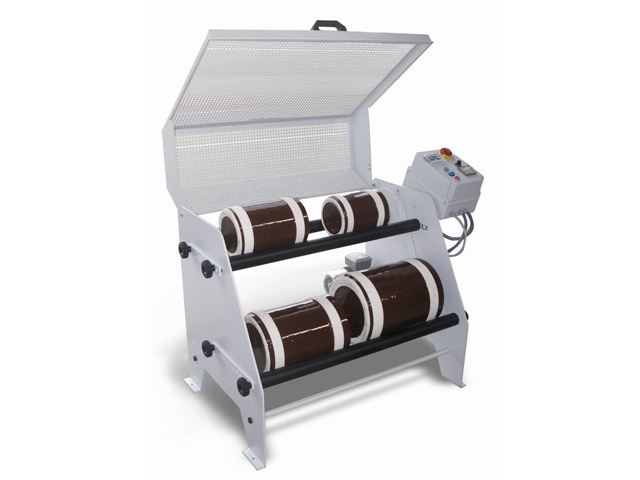

ROLLER MILL TURN
Mill for the use of cylindrical jars where the grinding takes place by rotating the jars on the rollers. With this type of mill it is possible grind larger quantities than a mill quick. FEATURES
- Principle of grinding: gravity
- Uses cylindrical jars with capacities 1,5 – 3 – 5 – 7 – 10 – 15 – 20 lt and with input material size <190 mm.
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
- Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
- Possibility to program the cooling (optional)
- Management of the cooking cycle entrusted to a computer equipped with a touch screen
- Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
- Possibility of firing samples with a maximum size of 40 x 80 mm.
Mechanical shaft stirrer with LED display.
Maximum stirring rate of 20 Litres.
Agitation rate adjustable from 50 to 2,200 rpm with a power of 50W.
Overheating motor overload indicator light.
Upper passage hole for stirring rods.
Supplied complete with steel spindle and relative key.
Degree of protection IP 42. 220V power supply.
For the percentage determination of calcium carbonate in clays used in the ceramic and brick industry, and in other products such as limestone, marl, earth in general, sands, etc.
CALCIMETER PIZZARELLI MODEL
Consisting of base, graduated volume tank (0/100 cc), breather, and upper reagent tank, 5 cc sample holder test tube.
Total height 680 mm.
Net weight 0.7 kg
CALCIMETER DIETRICH- FRÜLING MODEL
Consisting of a base with metal rods, sample bottle, reagent holder tube, graduated glass beaker for cooling water, cooling coil, graduated volume tank (0/200 cc) and leveling tank or vent water collection.
Dimensions 400x220x1000 mm.
Net weight 12 kg
PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces
Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.
Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.
Electronics with inverter for precise regulation of the number of revolutions.
Model with 1 test group.
Model with 3 test groups.
For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
