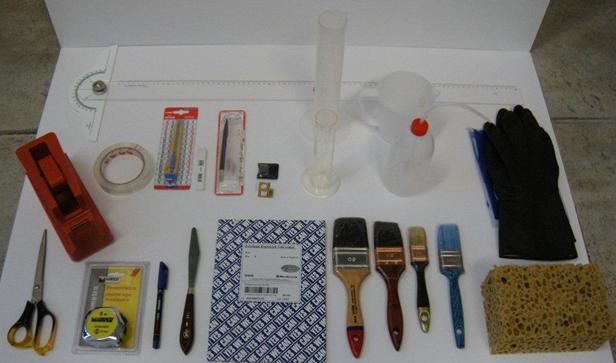

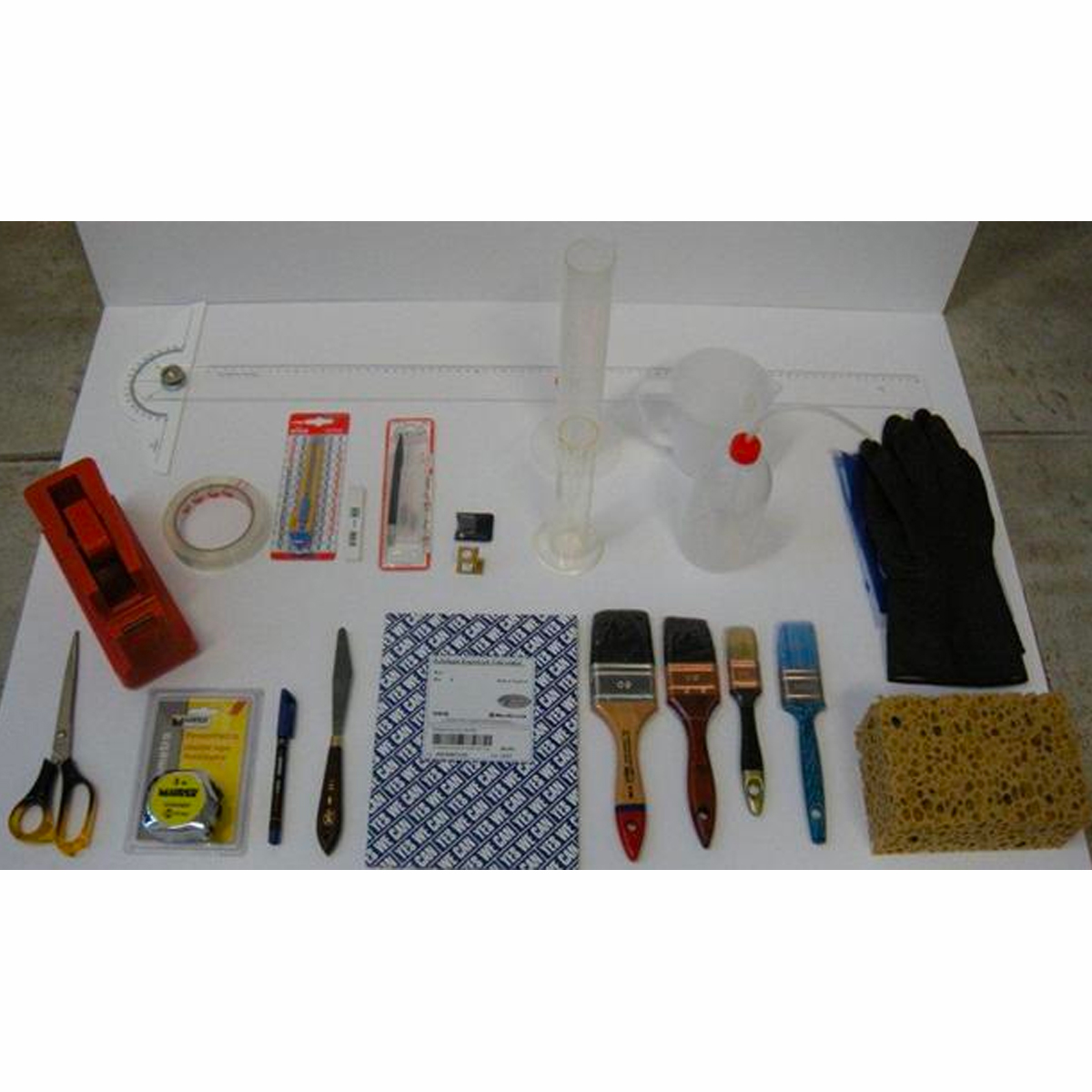

SEEDKIT ACCESSORIES
Complementary accessories. Set for use during the preparation of flat and round screens
|
CODE |
DESCRIPTION AND USE |
| AQSSEEDKIT | SEEDKIT - ACCESSORIES FOR SCREEN MAKING LABORATORY (COMPLETE SET OF THE BELOW ITEMS) |
| ARCARG1010L05 | GRADUATED CARAF 10X10 L. 0.5 (TO DOSE LIQUID PRODUCTS) |
| ARCCGB817ML100 | SHORT GRADUATED CYLINDER 817 - ML 100 (TO MEASURE CHEMICALS) |
| ARCCGB820ML250 | SHORT GRADUATED CYLINDER 820 - ML 250 (TO MEASURE CHEMICALS) |
| AGDCARTIGLIO | CLAW CUTTER (TO CUT FILMS, STRETCHED FRAMES, SCREENS, ETC.) |
| AGDCD400PCLR | CUTTER D400 P WITH SPARE BLADES (TO CUT FILMS, STRETCHED FRAMES, SCREENS, ETC.) |
| AGDDISPNA3366 | ADHESIVE ROLL TAPE DISPENSER 33/66M (DISPENSER FOR ADHESIVE TAPE) |
| ARCFLV3M | FLEXOMETER VOLA 3 METER LENGTH (FOR SEVERAL MEASUREMENTS) |
| AGDFORLAB6P | 6 INCHES LASER SCISSOR (TO CUT FABRICS, FILMS, DESIGNS ON PAPER, ETC.). |
| ARCGGAA | RUBBER ANTI-ACID GLOVES (TO WEAR WHEN USING CORROSIVE OR FLAMMABLE PRODUCTS) |
| AGDKITLAMR9MM | KIT 10 SPARE BLADES 9 MM FOR CLAW CUTTER (SPARE BLADES FOR CUTTER) |
| AQSLEN1010 | 10X10 MESH COUNTER (TO CONTROL DESIGNS, FILMS, FABRICS OR FINISHED SCREENS) |
| AGDNASCRYCL1966 | ADHESIVE TAPE CRYSTAL CLEAR MM 19X66 MT |
| AQSPELEXP | EXPOSURE CALCULATOR FILM (TO CONTROL ENGRAVING ANGLES) |
| AGDPENSSFBLU | STABILO OH PEN SUPERFINE PERMANENT BLUE (TO WRITING ON FILMS) |
| ARCPPACR | NYLON BRUSH 40 MM ( TO CLEAN OR DEGREASE THE FABRICS) |
| ARCPSB30MM | BLOND BRISTLE BRUSH 30 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCPSN50MM | BLACK BRISTLE BRUSH 50 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCPSN60MM | BLACK BRISTLE BRUSH 60 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCRIGTGRAD80 | T RULER PERSPEX NEUTRAL -MOVING HEAD- GRAD. CM. 80, (TO CONTROL ANGLES AND LINES) |
| AQSSBAN111 | RETOUCHING SPATULA FINE ARTS NO. 111, (FOR FINISHING AND FILLER APPLICATION) |
| ARCSPRZPL500CC | PLASTIC SPRAY BOTTLE 183 - 500 ML (FOR SEVERAL LIQUIDS) |
| ARCSSG | GIANT SYNTHETIC SPONGE (FOR ACCESSORIES OR EQUIPMENT CLEANING) |
Special fabrics for screen printing, for precision filtration and for industrial applications where high accuracy textile micronets are needed.
SUPREX is a Monofilament Polyester Fabric specifically designed for Screen printing Applications.
The SUPREX range includes coarse fabric for printing high density inks, glitters, flocking and finer fabric for printing UV inks and high definition prints.
It is used to remove excess water after the development of flat screens or for cleaning residue application of catalysts/hardeners or protective coatings in the process of finishing the screen itself.
TECHNICAL FEATURES
The suction pump is composed of three parts:
– Motor impeller channel to 150 cubic meters/hour;
– Central body with door opening that allows the extraction of container that collects the waste intake;
– A galvanized iron suction blade can be provided in two main sizes: 24 and 40 cm.
POWER SUPPLY
380 volt – 50 Hz
Seedex photoexposer is a three-function machine for drying and exposing screen printing frames.
MACHINE’S DESCRIPTION AND CHARACTERISTICS:
Painted steel structure
The machine is equipped with a dryer with drawers located in the bottom part of the machine, with a pneumatic press in the central part, and a halogen lamp located in the upper part.
The Pneumatic press is available in 2 versions:
manual opening (model TC) and
automatic opening (model TC-A);
Dryer with 3 drawers sliding on bearings to dry photosensitive emulsion before exposure,
Completed with a UV ray protection system consisting of a rigid casing with a self-winding front curtain and sliding side panels for inspection.
The control panel consists of a 29 channel digital computer that can control and store exposure times, vacuum times, and the drying kiln temperature and display the number of hours the bulb has been operating in order to monitor its lifetime.
Exposure compensating light with photocell
A vacuum meter is installed on the control panel that allows the pressure control in the vacuum table
The cooling system include preventing overheating of electrical components
Metal-halogen lamp in 2 versions: 2000/5000 W or 3500/7000 W
POWER SUPPLY
400 V – 50 Hz (3 phases + earth) – 10000 W, with variations possible on request
RECOMMENDED SPARE PARTS
halogen bulb 5000 or 7000 W depending on the models
rubber mat with a sealed edge sized to the pneumatic press
|
CODE NUMBER |
PHOTOEXPOSER TC (MANUAL PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTC1 |
PHOTOEXPOSER TC 1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTC2 |
PHOTOEXPOSER TC 2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTC3 |
PHOTOEXPOSER TC 3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTC4 |
PHOTOEXPOSER TC 4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTC5 |
PHOTOEXPOSER TC 5 |
140X220 |
120X200 |
258X178X300 H |
|
CODE NUMBER |
PHOTOEXPOSER TC-A (AUTOMATIC PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTCA1 |
PHOTOEXPOSER TC-A1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTCA2 |
PHOTOEXPOSER TC-A2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTCA3 |
PHOTOEXPOSER TC-A3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTCA4 |
PHOTOEXPOSER TC-A4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTCA5 |
PHOTOEXPOSER TC-A5 |
140X220 |
120X200 |
258X178X300 H |
A solution developed for automatic processing and washing of all kinds of flat screens after the exposure step. It allows a perfect screen opening so it is possible to obtain very high constancy and quality of the finished frame.
TECHNICAL CHARACTERISTICS
Completely stainless steel made. Provided with recycling device with filters which cut down the water consumption and allow to reuse the recycled water for the development of the screens. An electric control panel is used to set all the programs for automatic development and washing cycles.
AVAILABLE MODELS
S-VA Standard Model
S-VAD Model with locking doors
|
CODE |
NAME |
MODEL |
USEFUL SIZE CM. |
OVERALL DIMENSIONS CM. |
|
AQSSVA1216 |
AUTOMATIC DEVELOPING MACHINE |
S-VA 1216 |
120X160 |
160X70X250 H. |
|
AQSVAD1216 |
AUTOMATIC DEVELOPING MACHINE |
S-VAD 1216 |
120X160 |
160X70X250 H. |
