SERIGRAPHIC CHEMICAL PRODUCTS

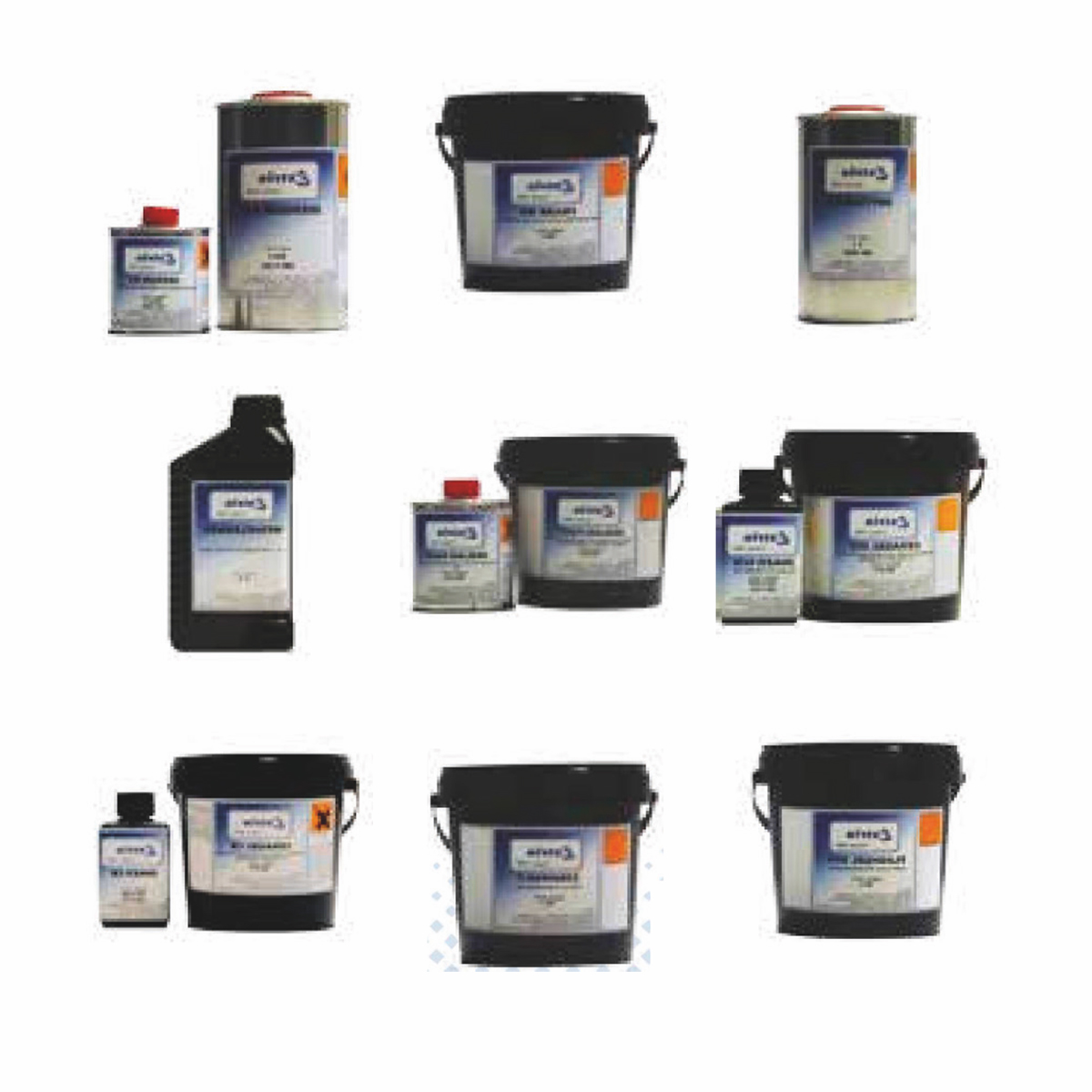

Seedex, in collaboration with its partner Extris proposes you a complete range of chemical products for the screen printing. Top quality prints result in market success. With EXTRIS products, you can be certain of the quality in your printing. You can find the right product for every step of your screen-printing workflow, beginning with the pre-treatment and ending up with the cleaning. Extris products are of the highest quality, also from an ecological viewpoint!
Seedex polymerizer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C) or for hardening or polymerizing ( after having applied a proper chemical hardener ) at a higher temperature (55 – 65°C).
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 100°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions
(other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power 9 kW
RECOMMENDED SPARE PARTS
Timer for automatic start and stop
Heating elements
RECOMMENDED HARDENER
Gelhard HD
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
Seedex photoexposer is a three-function machine for drying and exposing screen printing frames.
MACHINE’S DESCRIPTION AND CHARACTERISTICS:
Painted steel structure
The machine is equipped with a dryer with drawers located in the bottom part of the machine, with a pneumatic press in the central part, and a halogen lamp located in the upper part.
The Pneumatic press is available in 2 versions:
manual opening (model TC) and
automatic opening (model TC-A);
Dryer with 3 drawers sliding on bearings to dry photosensitive emulsion before exposure,
Completed with a UV ray protection system consisting of a rigid casing with a self-winding front curtain and sliding side panels for inspection.
The control panel consists of a 29 channel digital computer that can control and store exposure times, vacuum times, and the drying kiln temperature and display the number of hours the bulb has been operating in order to monitor its lifetime.
Exposure compensating light with photocell
A vacuum meter is installed on the control panel that allows the pressure control in the vacuum table
The cooling system include preventing overheating of electrical components
Metal-halogen lamp in 2 versions: 2000/5000 W or 3500/7000 W
POWER SUPPLY
400 V – 50 Hz (3 phases + earth) – 10000 W, with variations possible on request
RECOMMENDED SPARE PARTS
halogen bulb 5000 or 7000 W depending on the models
rubber mat with a sealed edge sized to the pneumatic press
|
CODE NUMBER |
PHOTOEXPOSER TC (MANUAL PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTC1 |
PHOTOEXPOSER TC 1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTC2 |
PHOTOEXPOSER TC 2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTC3 |
PHOTOEXPOSER TC 3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTC4 |
PHOTOEXPOSER TC 4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTC5 |
PHOTOEXPOSER TC 5 |
140X220 |
120X200 |
258X178X300 H |
|
CODE NUMBER |
PHOTOEXPOSER TC-A (AUTOMATIC PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTCA1 |
PHOTOEXPOSER TC-A1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTCA2 |
PHOTOEXPOSER TC-A2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTCA3 |
PHOTOEXPOSER TC-A3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTCA4 |
PHOTOEXPOSER TC-A4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTCA5 |
PHOTOEXPOSER TC-A5 |
140X220 |
120X200 |
258X178X300 H |
Metal halide lamp for the photoexposing of flat or round screens treated with UV sensitive photoemulsions
Recommended products: CERAGEL SCD, CERAGEL SK and FLASHGEL SHW
Dryer-Polymerizer Kiln to dry the screen after emulsion application or to polymerize the same after the application of hardeners.
RECOMMENDED PRODUCTS
Emulsions serie CERAGEL and hardener GELHARD HD
TECHNICAL CHARACTERISTICS
Painted steel structure
External walls completely insulated
Automatic opening and closing roller shutter made by insulated alluminum
Maximum operating temperature 100°C
Complete of internal rack with 10 shelves for positioning of any size of frames
Thermostat with digital display
Drying or polymerizing is made by hot air fans
Several models or sizes are available on demand
|
CODE |
NAME |
MODEL |
USEFUL SIZE OF SHELVES MM. |
OVERALL DIMENSIONS MM. |
|
AQSFOEP135100 |
ROLLER SHUTTER KILN 10 SHELVES |
RS 1351 |
1350X1000 |
MM. 1730X1230X2100 H. |
|
AQSFOEP200120 |
ROLLER SHUTTER KILN 10 SHELVES |
RS 2012 |
2000X1200 |
MM. 2500X1430X2100 H. |
