TENSIOMETER

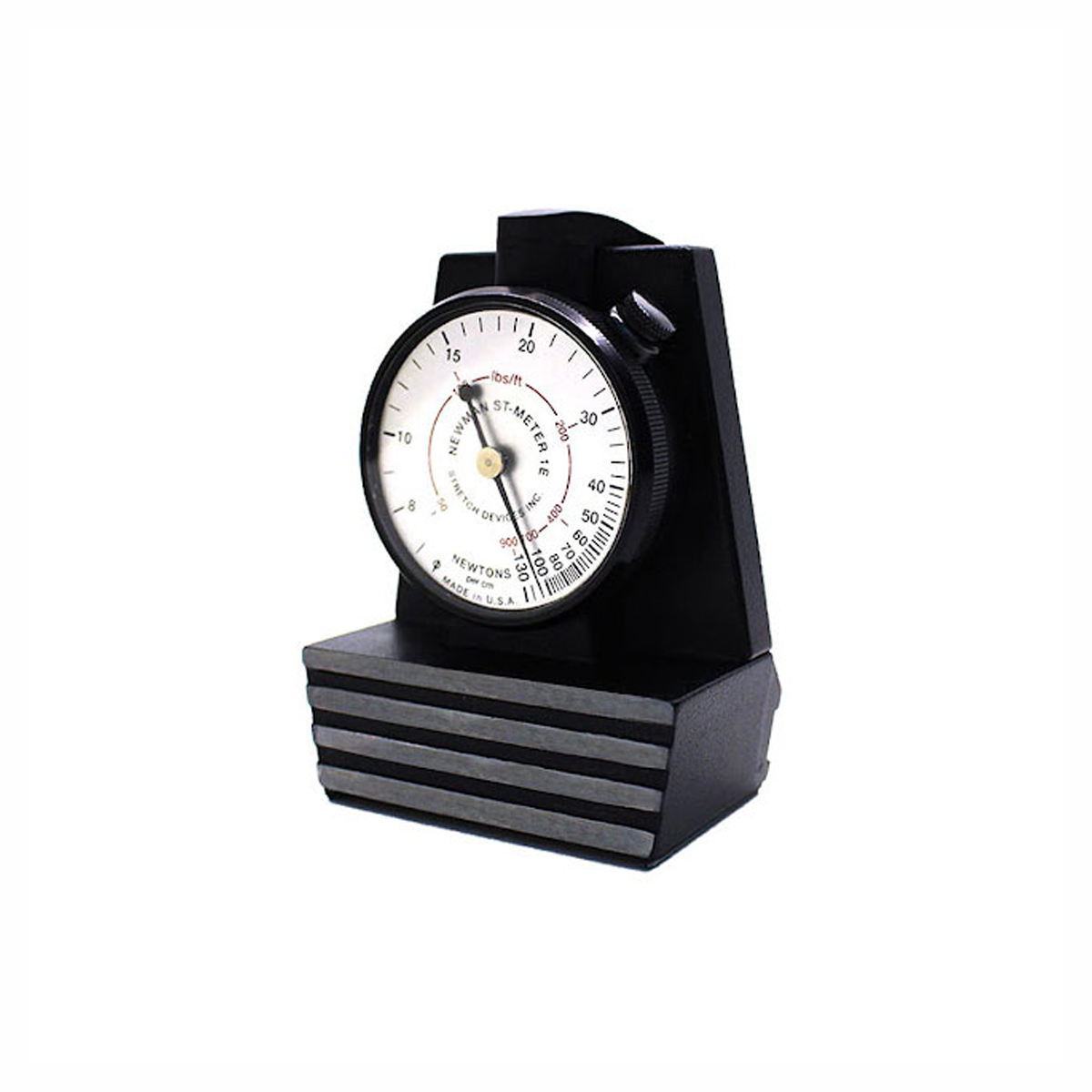

Analog instrument suitable for measuring the tension of the fabric on the screen printing frames during the tensioning phase. It allows a simple and reliable system to check the tension in the different weaving directions, by direct reading. The tensiometer operates mechanically, does not require batteries or power cables. It can be used with all types of fabric used in screen printing.
Stretching table with pneumatic clamps, allows the stretching of fabrics on to the screen printing frames with the required degree of tension.
This equipment can be used to tension various types of fabric such as polyester, nylon and steel.
The special characteristic of this stretching table is that the pneumatic clamps are mobile and can be positioned as required in order to tension even just one frame for each tensioning operation.
This stretching table allows to the operator to use also the small rest of fabrics that otherwise could be not useable.
| CODE | PNEUMATIC STRETCHER | TABLE SIZE CM. | PRODUCTION CAPACITY N° OF FRAMES OF EXTERNAL SIZE CM…. |
| AQSTPP16 | MODEL TPP 16 | 185X185XH90 | 1-100X100, OR 2-100X50, OR 4-50X50 |
|
AQSTPP18 |
MODEL TPP 18 |
180X200XH90 |
1-130X105, OR 2-105X65, OR 4-50X50 |
|
AQSTPP20 |
MODEL TPP 20 |
200X200XH90 |
1-150X105, OR 2-105X75, OR 4-75X50 |
|
AQSTPP22 |
MODEL TPP 22 |
210X210XH90 |
1-150X130, OR 2-130X75, OR 4-75X75 |
|
AQSTPP24 |
MODEL TPP 24 |
210X230XH90 |
1-150X150, OR 2-150X75, OR 4-75X75 |
Complementary accessories.
Set for use during the preparation of flat and round screens
|
CODE |
DESCRIPTION AND USE |
| AQSSEEDKIT | SEEDKIT – ACCESSORIES FOR SCREEN MAKING LABORATORY (COMPLETE SET OF THE BELOW ITEMS) |
| ARCARG1010L05 | GRADUATED CARAF 10X10 L. 0.5 (TO DOSE LIQUID PRODUCTS) |
| ARCCGB817ML100 | SHORT GRADUATED CYLINDER 817 – ML 100 (TO MEASURE CHEMICALS) |
| ARCCGB820ML250 | SHORT GRADUATED CYLINDER 820 – ML 250 (TO MEASURE CHEMICALS) |
| AGDCARTIGLIO | CLAW CUTTER (TO CUT FILMS, STRETCHED FRAMES, SCREENS, ETC.) |
| AGDCD400PCLR | CUTTER D400 P WITH SPARE BLADES (TO CUT FILMS, STRETCHED FRAMES, SCREENS, ETC.) |
| AGDDISPNA3366 | ADHESIVE ROLL TAPE DISPENSER 33/66M (DISPENSER FOR ADHESIVE TAPE) |
| ARCFLV3M | FLEXOMETER VOLA 3 METER LENGTH (FOR SEVERAL MEASUREMENTS) |
| AGDFORLAB6P | 6 INCHES LASER SCISSOR (TO CUT FABRICS, FILMS, DESIGNS ON PAPER, ETC.). |
| ARCGGAA | RUBBER ANTI-ACID GLOVES (TO WEAR WHEN USING CORROSIVE OR FLAMMABLE PRODUCTS) |
| AGDKITLAMR9MM | KIT 10 SPARE BLADES 9 MM FOR CLAW CUTTER (SPARE BLADES FOR CUTTER) |
| AQSLEN1010 | 10X10 MESH COUNTER (TO CONTROL DESIGNS, FILMS, FABRICS OR FINISHED SCREENS) |
| AGDNASCRYCL1966 | ADHESIVE TAPE CRYSTAL CLEAR MM 19X66 MT |
| AQSPELEXP | EXPOSURE CALCULATOR FILM (TO CONTROL ENGRAVING ANGLES) |
| AGDPENSSFBLU | STABILO OH PEN SUPERFINE PERMANENT BLUE (TO WRITING ON FILMS) |
| ARCPPACR | NYLON BRUSH 40 MM ( TO CLEAN OR DEGREASE THE FABRICS) |
| ARCPSB30MM | BLOND BRISTLE BRUSH 30 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCPSN50MM | BLACK BRISTLE BRUSH 50 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCPSN60MM | BLACK BRISTLE BRUSH 60 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
| ARCRIGTGRAD80 | T RULER PERSPEX NEUTRAL -MOVING HEAD- GRAD. CM. 80, (TO CONTROL ANGLES AND LINES) |
| AQSSBAN111 | RETOUCHING SPATULA FINE ARTS NO. 111, (FOR FINISHING AND FILLER APPLICATION) |
| ARCSPRZPL500CC | PLASTIC SPRAY BOTTLE 183 – 500 ML (FOR SEVERAL LIQUIDS) |
| ARCSSG | GIANT SYNTHETIC SPONGE (FOR ACCESSORIES OR EQUIPMENT CLEANING) |
The PVC tank is used for manual processing flat or round screens after the exposure step.
RECOMMENDED ACCESSORIES
Water jet pump; water vacuum extractor
TECHNICAL CHARACTERISTICS
The supporting frame is made of painted steel
The tank is made of acid-resistant PVC, electro-welded with robust edges
Provided with spray unit and tap fitting
Frame or cylinder supporting grid
Central lighting viewer (CV models) for processing control
AVAILABLE MODELS
SV without the central viewer
CV with the central viewer
CVRA (on demand) with water re-cycling system and bottom wheel carriage tank
| CODE | NAME | MODEL | USEFUL SIZE CM. | OVERALL DIMENSIONS CM. |
|
AQSVCV070100 |
PVC DEVELOPING TANK |
CV-0710 |
70X100 |
106X95X176 H. |
|
AQSVSV070100 |
PVC DEVELOPING TANK |
SV-0710 |
70X100 |
106X95X176 H. |
|
AQSVCV075200 |
PVC DEVELOPING TANK |
CV-0752 |
75X200 |
205X100X222 H. |
|
AQSVSV075200 |
PVC DEVELOPING TANK |
SV-0752 |
75X200 |
205X100X222 H. |
|
AQSVCV100140 |
PVC DEVELOPING TANK |
CV-1014 |
100X140 |
145X125X185 H. |
|
AQSVSV100140 |
PVC DEVELOPING TANK |
SV-1014 |
100X140 |
145X125X185 H. |
|
AQSVCV120160 |
PVC DEVELOPING TANK |
CV-1216 |
120X160 |
165X145X185 H. |
|
AQSVSV120160 |
PVC DEVELOPING TANK |
SV-1216 |
120X160 |
165X145X185 H. |
The Seedex coating machine is cost efficient, ideal for smaller size frames for universal printing applications.
The infinitely adjustable speed, the extremely smooth movement of the coating carriage and the possibility of selecting the number of coating passes either side will result in depositing reproducible amounts of emulsion for perfect stencils. The Seedex coating machine grants a perfect reproducibility of the coating layer structure coating tolerance +/- 1 micron.
DESCRIPTION
Very user-friendly
Supplied with a full touch screen panel
Adjustable stepless speed
Coat build up from one or two sides
The CPU can store 50 different customized programs
The cross beam can be adapted simply to the required frame format
The machine is supplied installed and is supplied with a pair of coating troughs (length according to desire)
TECHNICAL DATA :
Electrical connection: 230 V – 50/60 hz (other voltage on request)
Pneumatic connection: 6 bar
Control: maintenance-free compact control (SPS) with touch screen panel language change-over by push a button
OPTIONS :
lower frameholder movable
double coating with one clamp per frame
double coating with two clamps per frame
|
CODE |
NAME |
MODEL |
USEFUL SIZE CM |
|
AQSPEM1515 |
AUTOMATIC COATING MACHINE |
SP-B 1515 |
150X150 |
|
AQSPEM1520 |
AUTOMATIC COATING MACHINE |
SP-B 1520 |
150X200 |
|
AQSPEM1525 |
AUTOMATIC COATING MACHINE |
SP-B 1525 |
150X250 |
