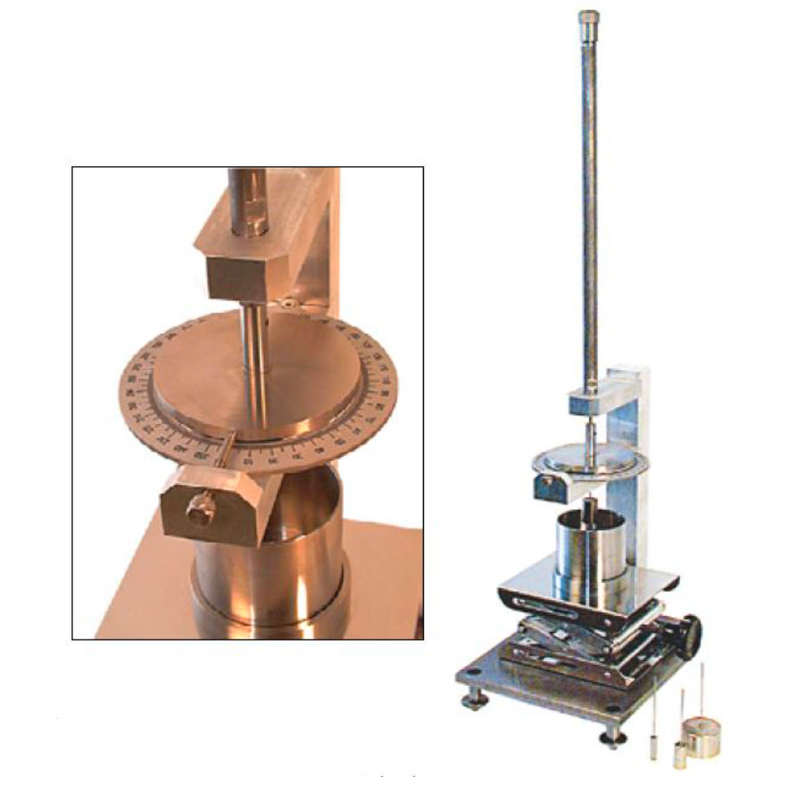

Universal torsion viscometer, model TV / 30 / A (type Gallenkamp)

Back to products

Manually operated, and with sample cup lifting system.   Range from 0.25 to 1000 poises. The viscometer is supplied complete with 1 graduated scale, n.1 twisted wire mod. 30 SWG, 4 measuring cylinders (diameter 1/4 ”, 1/2 ”, 11/16 ”, 1+ 5/8 ”),

  1. 1 sample cup in stainless steel ø 76×67 mm.
  Spare parts and accessories: Twist wire mod. 30 SWG Twisted wire mod. 36 SWG 1/4 ” measuring cylinder 1/2 ” measuring cylinder 11/16 ” measuring cylinder 1+ 5/8 ” measuring cylinder Size stainless steel sample cup ø 76×67 mm to be placed on the support table of the viscometer. Sample holder cup with cavity of cooling down. Ricambi ed accessori: Filo a torsione mod. 30 SWG Filo a torsione mod. 36 SWG Cilindro di misura da 1/4'’ Cilindro di misura da 1/2'’ Cilindro di misura da 11/16'’ Cilindro di misura da 1+ 5/8'’ Tazza portacampione in acciaio inox di dimensioni ø 76x67 mm da collocare sul tavolo di supporto del viscosimetro. Tazza portacampione con intercapedine di raffreddamento.

Download pdf
Video
RAPID LABORATORY OVEN CVK-N – CVK-N / S – CVK-N / SCS
,

Laboratory oven built with a steel structure painted in fire at 180 ° C with paints scratch-resistant epoxy.

Thermal insulation is provided in ceramic fiber and low-density refractory bricks.

For the CVK-N and CVK-N / S models, the heating parts are composed of Kanthal-type spiral-wound electric resistors.

For the CVK-N / SCS model the heating parts are composed of silicon carbide electric resistors.

With this oven, it is possible to simulate the entire cooking curve of a continuous industrial oven.

Oven equipped with an easily settable control panel.

Various models available (firing volume and maximum temperature).



DIGITAL HANDHELD COLORIMETER
,

The RM200QC Imaging Spectro Colorimeter is designed to ensure stable comparison of colors on materials and products, whenever color control is important.

Practical and pocket-sized tool is perfect for laboratory or in-line color checking.

System with 45 ° / 0 geometry and LED light source, with reading spot of 4 and 8 mm.

With USB interface that allows the instrument to be recharged and the measurements to be downloaded to the computer.



Uses:

– verification of color stability throughout the entire production process.

– immediate quality control with Pass / Fail procedure.





COLUMN STIRRER MOD. AMD20-D
,

Mechanical shaft stirrer with LED display.

Maximum stirring rate of 20 Litres.

Agitation rate adjustable from 50 to 2,200 rpm with a power of 50W.

Overheating motor overload indicator light.

Upper passage hole for stirring rods.

Supplied complete with steel spindle and relative key.

Degree of protection IP 42. 220V power supply.

ABRASIMETERS PEI100 & PEI300
,

PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces

Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.

Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.

Electronics with inverter for precise regulation of the number of revolutions.

Model with 1 test group.

Model with 3 test groups.

For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
